General information |
|
Model
|

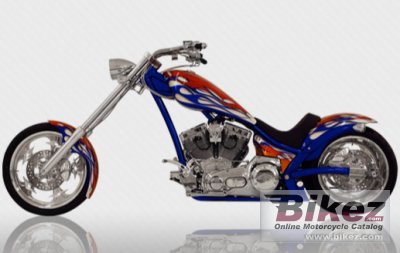

American IronHorse Texas Chopper |
|
Year
|
2009 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.3 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1819.1 ccm (111.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
110.0 HP (80.3 kW)) |
|
Torque
|
155.9 Nm (15.9 kgf-m or 115.0 ft.lbs) |
|
Compression
|
9.5:1 |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Valves (OHV) |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Chrome hydraulic ´Easy Pull´ |
|
Exhaust system
|
2-into-1 Dyno tuned exhaust system with integral heat shields |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Soft-style frame with 4 inch top tube stretch and 8 inch stretched single downtube |
|
Rake (fork angle)
|
42.0° |
|
Front suspension
|
Telescopic |
|
Rear suspension
|
A-frame swing arm |
|
Front tire
|
90/90-21 |
|
Rear tire
|
300/40-18 |
|
Front brakes
|
Single disc. 4-piston polished calipers |
|
Rear brakes
|
Single disc. 4-piston polished calipers |
|
Physical measures and capacities |
|
Dry weight
|
317.0 kg (698.9 pounds) |
|
Power/weight ratio
|
0.3470 HP/kg |
|
Fuel capacity
|
13.00 litres (3.43 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
|
Comments
|
Optional 117 or 124 C.I. S and S engines. |
