General information |
|
Model name
|

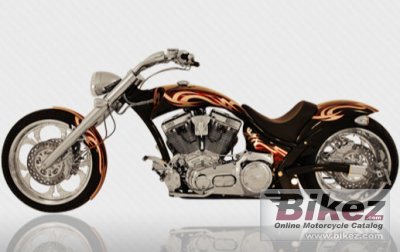

American IronHorse Slammer |
|
Model year
|
2009 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.0 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1917.4 ccm (117.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Compression
|
10.2:1 |
|
Fuel system
|
Injection. SMART electronic fuel injection |
|
Fuel control
|
Overhead Valves (OHV) |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Exhaust system
|
2-into-1 Dyno tuned exhaust system with integral heat shields |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Soft-style with 2 inch back bone and single arched downtube |
|
Rake (fork angle)
|
45.0° |
|
Front suspension
|
Telescopic |
|
Rear suspension
|
Stealth swing arm with 2 inch stretch |
|
Front tire
|
120/80-21 |
|
Rear tire
|
300/40-18 |
|
Front brakes
|
Single disc. 4-piston polished calipers |
|
Rear brakes
|
Single disc. 4-piston polished calipers |
|
Physical measures and capacities |
|
Dry weight
|
320.0 kg (705.5 pounds) |
|
Fuel capacity
|
13.24 litres (3.50 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
|
Comments
|
Optional 110 or 124 C.I. engines. |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 American IronHorse Slammer discussion group or the general American IronHorse discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this American IronHorse bike
|
Reliability for the 2009 American IronHorse Slammer:
 (57.0 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
