American IronHorse Classic Chop 20092009 American IronHorse Classic Chop specifications, pictures, reviews and rating |

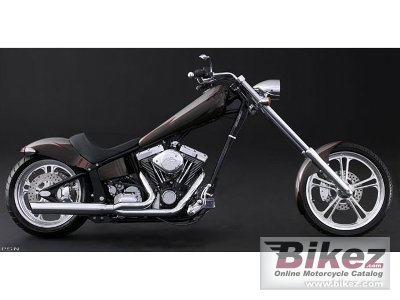

 2009 American IronHorse Classic Chop. Picture credits - American IronHorse. Submit more pictures. |
|
| General information | |
|---|---|
| Model | American IronHorse Classic Chop |
| Year | 2009 |
| Category | Custom / cruiser |
| Rating | 3.0 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1917.4 ccm (117.00 cubic inches) |
| Engine type | V2, four-stroke |
| Fuel system | Injection. SMART electronic fuel injection |
| Fuel control | Overhead Valves (OHV) |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Exhaust system | 2-into-1 Dyno tuned exhaust system with integral heat shields |
| Chassis, suspension, brakes and wheels | |
| Frame type | Soft-style frame with 4 inch back bone stretch and 8 inch downtube stretch |
| Rake (fork angle) | 42.0° |
| Front suspension | Telescopic |
| Rear suspension | A-frame swing arm |
| Front tire | 90/90-21 |
| Rear tire | 180/40-18 |
| Front brakes | Single disc. 4-piston polished calipers |
| Rear brakes | Single disc. 4-piston polished calipers |
| Physical measures and capacities | |
| Dry weight | 310.0 kg (683.4 pounds) |
| Fuel capacity | 13.00 litres (3.43 US gallons) |
| Other specifications | |
| Comments | Optional 110 or 124 C.I. S and S engines. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | See US insurance cost for this bike.
|
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 American IronHorse Classic Chop discussion group or the general American IronHorse discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Sell or buy used bikes?Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2009 American IronHorse Classic Chop or advertise any other MC for sale. You can list all 2009 American IronHorse Classic Chop available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes. Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc. |
|
| Rating sample for this American IronHorse bike | |
Value for money for the 2009 American IronHorse Classic Chop:  (60.3 out of 100)Click here for complete rating. You can also compare bikes. |
|
