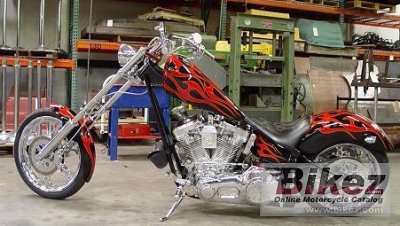

| American Eagle's profilation of this bike |
| The Raptor is over 9 feet long , features a 45-degree rake and the enormous 250-rear tire, which gives you the ‘old school’ chopper feel with innovative design and technology of today. |
| General information |
|---|
| Model | American Eagle Raptor |
| Year | 2009 |
| Category | Custom / cruiser |
| Rating | 3.2 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement | 1640.0 ccm (100.07 cubic inches) |
| Engine type | V2, four-stroke |
| Fuel system | Carburettor. Super G carburator |
| Ignition | Solid state ignition box with diagnostics |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | Handcrafted Alloy Frame |
| Rake (fork angle) | 45.0° |
| Front suspension | Twin soft suspension ride shocks |
| Front tire | 90/90-21 |
| Rear tire | 250-18 |
| Front brakes | Single disc. 4-piston calipers |
| Rear brakes | Single disc. 4-piston calipers |
| Physical measures and capacities |
|---|
| Dry weight | 260.8 kg (575.0 pounds) |
| Other specifications |
|---|
| Color options | Custom paint scheme |
| Starter | Electric |
| Comments | Optional 113 c.inch engine and 2 up passenger seat. |
| Update specs | Report missing specs or required updates. |
| Further information |
|---|
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 American Eagle Raptor discussion group or the general American Eagle discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this American Eagle bike
|
Offroad capabilities for the 2009 American Eagle Raptor:
 (30.1 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
