| AJS' profilation of this bike |
| Now with a longer swinging arm, longer front forks and extended chassis for extra leg room and comfort.
Only the AJS Regal Raptor has this design of chassis. |
|
General moped information |
|
Motorcycle name
|

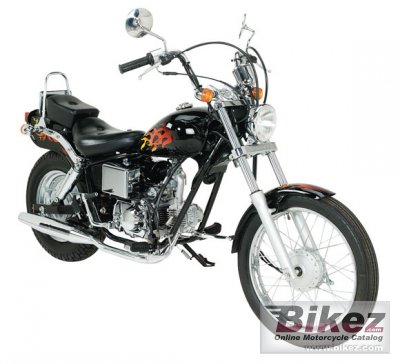

AJS Regal Raptor DD50 E-2 |
|
Year of manufacture
|
2010 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.0 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.0 ccm (2.99 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Bore x stroke
|
39.0 x 41.4 mm (1.5 x 1.6 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Coil CDI |
|
Cooling system
|
Air |
|
Gearbox
|
4-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiplate |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel tubes |
|
Front suspension
|
Telescopic fork |
|
Rear suspension
|
Dual shock swing arm |
|
Front tire
|
2.50-17 |
|
Rear tire
|
4.50-12 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
87.0 kg (191.8 pounds) |
|
Seat height
|
650 mm (25.6 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1400 mm (55.1 inches) |
|
Fuel capacity
|
6.00 litres (1.59 US gallons) |
|
Other specifications |
|
Color options
|
Black with red/yellow flames. |
|
Starter
|
Electric & kick |
