AJS JSM Trail 125 20112011 AJS JSM Trail 125 specifications, pictures, reviews and rating |

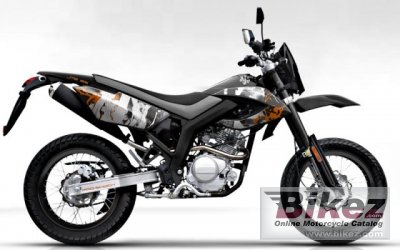

2011 AJS JSM Trail 125. Image credits - AJS.
| AJS' profilation of this bike |
| No other manufacturer comes close when it comes to value for money. |
| General information | |
|---|---|
| Motorcycle name | AJS JSM Trail 125 |
| Model year | 2011 |
| Category | Trial |
| Rating | 3.0 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 124.0 ccm (7.57 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 10.1 HP (7.3 kW)) |
| Top speed | 100.0 km/h (62.1 mph) |
| Bore x stroke | 54.0 x 54.0 mm (2.1 x 2.1 inches) |
| Fuel system | Carburettor |
| Fuel control | Overhead Cams (OHC) |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | USD telefork |
| Rear suspension | Pro Shock linked. |
| Front tire | 3.00-21 |
| Rear tire | 4.10-18 |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Dry weight | 115.0 kg (253.5 pounds) |
| Power/weight ratio | 0.0875 HP/kg |
| Seat height | 760 mm (29.9 inches) If adjustable, lowest setting. |
| Wheelbase | 1400 mm (55.1 inches) |
| Fuel capacity | 8.50 litres (2.25 US gallons) |
| Other specifications | |
| Color options | Black, white, orange |
| Starter | Electric |
| Electrical | 12V 6Ah battery |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 11 AJS JSM Trail 125 discussion group or the general AJS discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
