| AJS' profilation of this bike |
| Powerful, smooth Balance Shaft engine. |
|
General information |
|
Model name
|

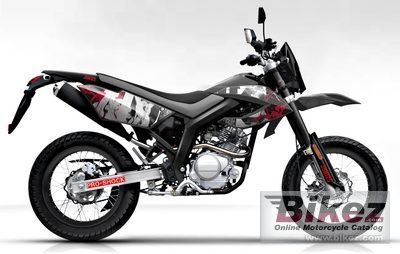

AJS JSM Motard 125 |
|
Model year
|
2010 |
|
Category
|
Super motard |
|
Rating
|
3.2 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
124.0 ccm (7.57 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
11.0 HP (8.0 kW)) @ 9500 RPM |
|
Top speed
|
100.0 km/h (62.1 mph) |
|
Bore x stroke
|
54.0 x 54.0 mm (2.1 x 2.1 inches) |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
C.D.I. |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
WEt, multiplate |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Upside-down fork |
|
Rear suspension
|
Pro Shock linked. |
|
Front tire
|
110/70-17 |
|
Rear tire
|
130/70-17 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
115.0 kg (253.5 pounds) |
|
Power/weight ratio
|
0.0957 HP/kg |
|
Seat height
|
760 mm (29.9 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1400 mm (55.1 inches) |
|
Fuel capacity
|
8.50 litres (2.25 US gallons) |
|
Other specifications |
|
Color options
|
Black, white, orange. Red, blue, orange graphics. |
|
Starter
|
Electric |
|
Comments
|
UK brand. |
