| General moped information |
|---|

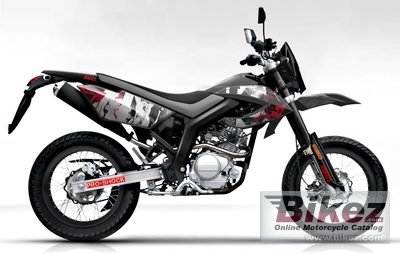

| Model: | AJS JSM 50 Motard |
| Year: | 2012 |
| Category: | Super motard |
| Rating: | 67.1 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 49.30 ccm (3.01 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Power: | 4.69 HP (3.4 kW)) @ 6800 RPM |
| Top speed: | 45.0 km/h (28.0 mph) |
| Bore x stroke: | 40.0 x 39.2 mm (1.6 x 1.5 inches) |
| Fuel system: | Carburettor |
| Fuel control: | Overhead Cams (OHC) |
| Ignition: | Coil, CDI. |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet, multiplate |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Steel |
| Front suspension: | Telescopic fork |
| Rear suspension: | Single shock |
| Front tyre: | 110/70-17 |
| Rear tyre: | 130/70-17 |
| Front brakes: | Single disc |
| Rear brakes: | Single disc |
| Physical measures and capacities |
|---|
| Dry weight: | 105.0 kg (231.5 pounds) |
| Power/weight ratio: | 0.0447 HP/kg |
| Seat height: | 820 mm (32.3 inches) If adjustable, lowest setting. |
| Wheelbase: | 1,400 mm (55.1 inches) |
| Fuel capacity: | 8.50 litres (2.25 gallons) |
| Other specifications |
|---|
| Color options: | Black with red, blue or orange graphics. |
| Starter: | Electric |
| Electrical: | 12V 6Ah battery |
| Light: | 12V 35W35W headlights |
| Comments: | UK brand. |
