| AJP's profilation of this bike |
| PR2 200 SM is great bike for the road. Engine availability together with the balanced suspensions makes this bike a delight for the worry drivers. |
| General information |
|---|

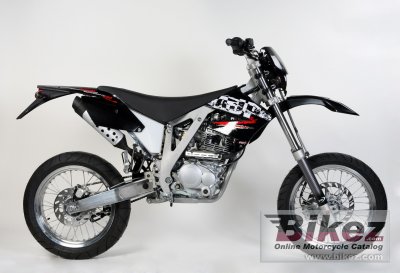

| Model | AJP PR4 200 SM |
| Year | 2010 |
| Category | Super motard |
| Rating | 3.1 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement | 198.0 ccm (12.08 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 18.0 HP (13.1 kW)) @ 8000 RPM |
| Torque | 13.2 Nm (1.3 kgf-m or 9.7 ft.lbs) @ 7000 RPM |
| Compression | 9.0:1 |
| Bore x stroke | 69.0 x 53.0 mm (2.7 x 2.1 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. Walbro, 30mm |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI |
| Cooling system | Oil & air |
| Gearbox | 5-speed |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | Steel double-cradle, detachable rear frame |
| Front suspension | Paioli hydraulic fork, |
| Front wheel travel | 260 mm (10.2 inches) |
| Rear suspension | ZF Sachs mono shock progressive action |
| Rear wheel travel | 290 mm (11.4 inches) |
| Front tire | 100/80-17 |
| Rear tire | 130/70-17 |
| Front brakes | Single disc. double piston calliper |
| Diameter | 255 mm (10.0 inches) |
| Rear brakes | Single disc. double piston calliper |
| Diameter | 210 mm (8.3 inches) |
| Physical measures and capacities |
|---|
| Dry weight | 106.0 kg (233.7 pounds) |
| Power/weight ratio | 0.1698 HP/kg |
| Seat height | 910 mm (35.8 inches) If adjustable, lowest setting. |
| Overall length | 2135 mm (84.1 inches) |
| Wheelbase | 1410 mm (55.5 inches) |
| Fuel capacity | 7.50 litres (1.98 US gallons) |
| Other specifications |
|---|
| Color options | Black/red |
| Starter | Electric & kick |
| Comments | Portuguese brand. |
| Update specs | Report missing specs or required updates. |
| Further information |
|---|
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Finance options | Compare US motorcycle loan quotes from the nation's top providers. |
| Parts finder | Revzilla offers up to 50% off motorcycle accessories. Ships to most countries.
Also check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 AJP PR4 200 SM discussion group or the general AJP discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this AJP bike
|
Touring capabilities for the 2010 AJP PR4 200 SM:
 (49.0 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
