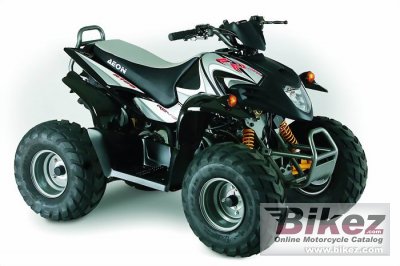

2010 Aeon Revo 50. Picture credits - Aeon. Submit more pictures.

2010 Aeon Revo 50

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
List all mopeds
Tip a friend
List related bikes

General moped information
Model:	Aeon Revo 50
Year:	2010
Category:	ATV
Rating:	Do you know this bike? Click here to rate it. We miss 2 votes to show the rating.
Engine and transmission
Displacement:	49.30 ccm (3.01 cubic inches)
Engine type:	Single cylinder, two-stroke
Power:	3.60 HP (2.6 kW)) @ 5800 RPM
Torque:	3.73 Nm (0.4 kgf-m or 2.8 ft.lbs) @ 5725 RPM
Compression:	6.8:1
Bore x stroke:	40.0 x 39.2 mm (1.6 x 1.5 inches)
Fuel system:	Carburettor. Mikuni VM16, 2-stroke
Ignition:	C.D.I.
Lubrication system:	Pump for automatically oil-fuel mixing
Cooling system:	Air
Gearbox:	Automatic
Transmission type, final drive:	Shaft drive (cardan)
Clutch:	Dry, centrifugal
Chassis, suspension, brakes and wheels
Front wheel travel:	24 mm (0.9 inches)
Rear wheel travel:	24 mm (0.9 inches)
Front tyre:	18/7-7
Rear tyre:	18/7-7
Front brakes:	Expanding brake (drum brake)
Rear brakes:	Single disc
Physical measures and capacities
Dry weight:	115.0 kg (253.5 pounds)
Power/weight ratio:	0.0313 HP/kg
Seat height:	710 mm (28.0 inches) If adjustable, lowest setting.
Overall height:	980 mm (38.6 inches)
Overall length:	1,440 mm (56.7 inches)
Overall width:	930 mm (36.6 inches)
Wheelbase:	970 mm (38.2 inches)
Fuel capacity:	5.00 litres (1.32 gallons)
Oil capacity:	1.00 litres (0.07 quarts)
Other specifications
Color options:	Red, black
Starter:	Electric & kick
Further information
Insurance costs	Get a US insurance quote from Progressive.
Parts finder	Chaparral provides online schematics & OEM parts for the US. 2Wheels offers first time 2Wheels buyers $10.00 off now. Same day shipment to the US. Also check out our overview of motorcycle webshops at Bikez.info.
ATV parts	Sixity.com sells ATV parts with free shipping to the US.
Ask questions	Join the 10 Aeon Revo 50 discussion group or the general Aeon discussion group.
Related bikes	List related bikes for comparison of specs.
