General information |
|
Motorcycle name
|

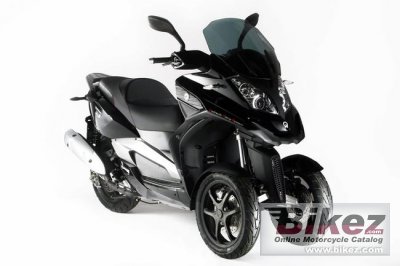

Aeon Quadro 350D |
|
Year model
|
2012 |
|
Type
|
Scooter |
|
Rating
|
3.9 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
313.0 ccm (19.10 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
22.8 HP (16.6 kW)) @ 7000 RPM |
|
Torque
|
23.7 Nm (2.4 kgf-m or 17.5 ft.lbs) @ 6000 RPM |
|
Bore x stroke
|
78.0 x 65.8 mm (3.1 x 2.6 inches) |
|
Fuel system
|
Injection |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Digital |
|
Lubrication system
|
Wet sump, Oil pump pressurized. |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
CVT |
|
Emission details
|
Euro 3 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel tube |
|
Front suspension
|
HTS system |
|
Front wheel travel
|
90 mm (3.5 inches) |
|
Rear suspension
|
Dual-damper unit swing arm |
|
Rear wheel travel
|
85 mm (3.3 inches) |
|
Front tire
|
110/80-14 |
|
Rear tire
|
140/70-15 |
|
Front brakes
|
Double disc. Hydraulic |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Single disc. Hydraulic |
|
Diameter
|
256 mm (10.1 inches) |
|
Wheels
|
Dual front wheel |
|
Seat
|
2-person seat |
|
Physical measures and capacities |
|
Dry weight
|
200.0 kg (440.9 pounds) |
|
Power/weight ratio
|
0.1140 HP/kg |
|
Seat height
|
780 mm (30.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1290 mm (50.8 inches) |
|
Overall length
|
2330 mm (91.7 inches) |
|
Overall width
|
811 mm (31.9 inches) |
|
Fuel capacity
|
13.00 litres (3.43 US gallons) |
|
Other specifications |
|
Color options
|
White, black, matte black, grey |
|
Starter
|
Electric |
|
Light
|
Dual front light |
