| Aeon's profilation of this bike |
| High perfomances for all kind of terrains , in
the mountains and in the snow, with
indipendent tyres, no vibrations, easy and
soft handle... Overland 600 will enrich the
range of bigger size engine. |
| General information |
|---|

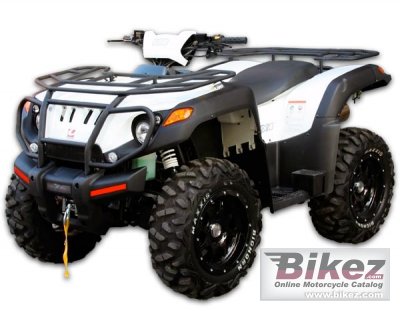

| Model | Aeon Overland 600 |
| Year | 2012 |
| Category | ATV |
| Rating | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement | 565.0 ccm (34.48 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 20.1 HP (14.7 kW)) @ 6500 RPM |
| Torque | 49.0 Nm (5.0 kgf-m or 36.1 ft.lbs) @ 5500 RPM |
| Compression | 10.2:1 |
| Bore x stroke | 92.0 x 85.0 mm (3.6 x 3.3 inches) |
| Fuel system | Carburettor |
| Ignition | C.D.I. |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Centrifugal clutch |
| Driveline | 4WD with reverse. CVT. |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension | Dual hydraulic shock, Double wishbone |
| Rear suspension | Single hydraulic shock, Unit swing arm |
| Front tire | 26/8-14 |
| Rear tire | 26/10-14 |
| Front brakes | Double disc |
| Diameter | 220 mm (8.7 inches) |
| Rear brakes | Single disc |
| Diameter | 190 mm (7.5 inches) |
| Physical measures and capacities |
|---|
| Dry weight | 342.0 kg (754.0 pounds) |
| Power/weight ratio | 0.0588 HP/kg |
| Seat height | 820 mm (32.3 inches) If adjustable, lowest setting. |
| Overall height | 1180 mm (46.5 inches) |
| Overall length | 2170 mm (85.4 inches) |
| Overall width | 1200 mm (47.2 inches) |
| Ground clearance | 288 mm (11.3 inches) |
| Wheelbase | 1294 mm (50.9 inches) |
| Fuel capacity | 24.00 litres (6.34 US gallons) |
| Other specifications |
|---|
| Color options | White, red |
| Starter | Electric |
