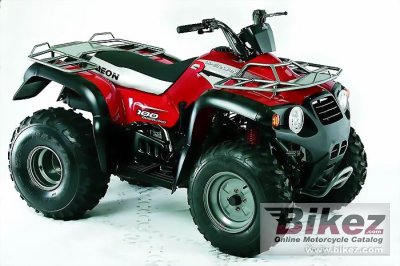

Aeon Overland 180 20102010 Aeon Overland 180 specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Aeon Overland 180 |
| Model year | 2010 |
| Category | ATV |
| Rating | 2.8 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 169.0 ccm (10.31 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 8.7 HP (6.4 kW)) @ 8200 RPM |
| Torque | 10.2 Nm (1.0 kgf-m or 7.5 ft.lbs) @ 4500 RPM |
| Compression | 9.1:1 |
| Bore x stroke | 61.0 x 57.8 mm (2.4 x 2.3 inches) |
| Fuel system | Carburettor |
| Ignition | C.D.I. |
| Lubrication system | Wet sump, oil pump pressurized |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Centrifugal clutch |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Dual hydraulic shock, Double wishbone |
| Rear suspension | Single hydraulic shock, Unit swing arm |
| Front tire | 21/7-10 |
| Rear tire | 22/10-8 |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Dry weight | 178.0 kg (392.4 pounds) |
| Power/weight ratio | 0.0489 HP/kg |
| Seat height | 770 mm (30.3 inches) If adjustable, lowest setting. |
| Overall height | 1170 mm (46.1 inches) |
| Overall length | 1740 mm (68.5 inches) |
| Overall width | 1050 mm (41.3 inches) |
| Ground clearance | 150 mm (5.9 inches) |
| Wheelbase | 1065 mm (41.9 inches) |
| Fuel capacity | 8.00 litres (2.11 US gallons) |
| Oil capacity | 1.20 litres (1.27 US quarts) |
| Other specifications | |
| Color options | Green, red |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 Aeon Overland 180 discussion group or the general Aeon discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2010 Aeon Overland 180 discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Aeon bike | |
Reliability for the 2010 Aeon Overland 180:  (63.3 out of 100)Click here for complete rating. |
|
