| General moped information |
|---|

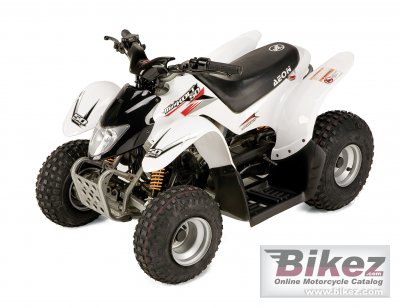

| Model: | Aeon Minikolt 50 |
| Year: | 2009 |
| Category: | ATV |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 49.30 ccm (3.01 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Power: | 3.62 HP (2.6 kW)) @ 5800 RPM |
| Torque: | 4.50 Nm (0.5 kgf-m or 3.3 ft.lbs) @ 5700 RPM |
| Compression: | 6.8:1 |
| Bore x stroke: | 40.0 x 39.2 mm (1.6 x 1.5 inches) |
| Fuel system: | Carburettor. Mikuni VM 16, 2-stroke |
| Ignition: | C.D.I. |
| Lubrication system: | Pump for automatically oil-fuel mixing |
| Cooling system: | Air |
Transmission type,
final drive: | Chain |
| Clutch: | Centrifugal clutch |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tube |
| Front suspension: | Dual hydraulic shock, Single A-arm |
| Front wheel travel: | 24 mm (0.9 inches) |
| Rear suspension: | Single hydraulic shock, Unit swing arm |
| Rear wheel travel: | 24 mm (0.9 inches) |
| Front tyre: | 145/70-6 |
| Rear tyre: | 145/70-6 |
| Front brakes: | Expanding brake (drum brake) |
| Rear brakes: | Single disc |
| Physical measures and capacities |
|---|
| Dry weight: | 77.0 kg (169.8 pounds) |
| Power/weight ratio: | 0.0470 HP/kg |
| Seat height: | 550 mm (21.7 inches) If adjustable, lowest setting. |
| Overall height: | 879 mm (34.6 inches) |
| Overall length: | 1,275 mm (50.2 inches) |
| Overall width: | 800 mm (31.5 inches) |
| Ground clearance: | 75 mm (3.0 inches) |
| Wheelbase: | 745 mm (29.3 inches) |
| Fuel capacity: | 3.40 litres (0.90 gallons) |
| Other specifications |
|---|
| Starter: | Electric & kick |
