| Aeon's profilation of this bike |
| Crossland RX 400 X4 is the summary of
Aeon technology applied on an tility vehicle. It has a complete four-drive system and double A-arm indipendent front suspension. |
|
General information |
|
Motorcycle name
|

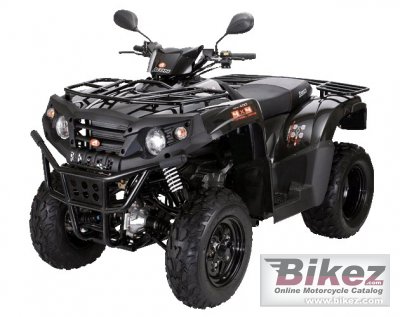

Aeon Crossland X4 400 |
|
Year of manufacture
|
2012 |
|
Type
|
ATV |
|
Rating
|
3.5 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
346.0 ccm (21.11 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
20.1 HP (14.7 kW)) @ 8500 RPM |
|
Torque
|
30.0 Nm (3.1 kgf-m or 22.1 ft.lbs) @ 6500 RPM |
|
Compression
|
10.6:1 |
|
Bore x stroke
|
82.0 x 65.6 mm (3.2 x 2.6 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Centrifugal clutch |
|
Driveline
|
CVT, 4WD with reverse |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel |
|
Front suspension
|
Double A-Arm |
|
Front wheel travel
|
178 mm (7.0 inches) |
|
Rear suspension
|
Swing Arm |
|
Rear wheel travel
|
165 mm (6.5 inches) |
|
Front tire
|
23/7-12 |
|
Rear tire
|
23/10-12 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
236.0 kg (520.3 pounds) |
|
Weight incl. oil, gas, etc
|
250.0 kg (551.2 pounds) |
|
Power/weight ratio
|
0.0853 HP/kg |
|
Seat height
|
850 mm (33.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1150 mm (45.3 inches) |
|
Overall length
|
1940 mm (76.4 inches) |
|
Overall width
|
1080 mm (42.5 inches) |
|
Ground clearance
|
200 mm (7.9 inches) |
|
Wheelbase
|
1230 mm (48.4 inches) |
|
Fuel capacity
|
14.00 litres (3.70 US gallons) |
|
Other specifications |
|
Color options
|
Red, black |
|
Starter
|
Electric |
|
Carrying capacity
|
Under-seat case with safety lock, Front and rear racks. |
|
Comments
|
2 seats. |
