| General information |
|---|

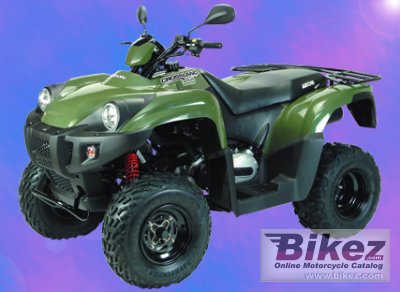

| Model: | Aeon Crossland 300 |
| Year: | 2009 |
| Category: | ATV |
| Rating: | 3.2 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission |
|---|
| Displacement: | 272.3 ccm (16.62 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 18.1 HP (13.2 kW)) @ 6500 RPM |
| Torque: | 22.0 Nm (2.2 kgf-m or 16.2 ft.lbs) @ 5500 RPM |
| Compression: | 10.3:1 |
| Bore x stroke: | 72.7 x 65.6 mm (2.9 x 2.6 inches) |
| Fuel system: | Carburettor. Keihin PTG 22 |
| Ignition: | C.D.I. |
| Lubrication system: | Wet sump, oil pump pressurized |
| Cooling system: | Liquid |
| Gearbox: | Automatic |
Transmission type,
final drive: | Shaft drive (cardan) |
| Clutch: | Centrifugal clutch |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Dual hydraulic shock, Double wishbone |
| Front wheel travel: | 153 mm (6.0 inches) |
| Rear suspension: | Single hydraulic shock, Unit swing arm |
| Rear wheel travel: | 165 mm (6.5 inches) |
| Front tyre: | 22/7-10 |
| Rear tyre: | 22/10-9 |
| Front brakes: | Double disc |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Dry weight: | 233.0 kg (513.7 pounds) |
| Weight incl. oil, gas, etc: | 50.0 kg (110.2 pounds) |
| Power/weight ratio: | 0.0777 HP/kg |
| Seat height: | 850 mm (33.5 inches) If adjustable, lowest setting. |
| Overall height: | 1170 mm (46.1 inches) |
| Overall length: | 1980 mm (78.0 inches) |
| Overall width: | 1080 mm (42.5 inches) |
| Ground clearance: | 200 mm (7.9 inches) |
| Wheelbase: | 1230 mm (48.4 inches) |
| Fuel capacity: | 14.00 litres (3.70 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
