| General moped information |
|---|

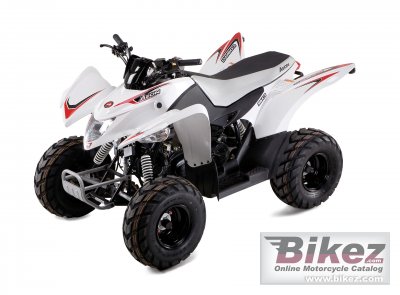

| Model | Aeon Cobra 50 |
| Year | 2010 |
| Category | ATV |
| Rating | 3.4 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission |
|---|
| Displacement | 49.0 ccm (2.99 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Power | 3.6 HP (2.6 kW)) @ 5800 RPM |
| Torque | 4.5 Nm (0.5 kgf-m or 3.3 ft.lbs) @ 5700 RPM |
| Compression | 6.8:1 |
| Bore x stroke | 40.0 x 39.2 mm (1.6 x 1.5 inches) |
| Fuel system | Carburettor |
| Ignition | CDI |
| Lubrication system | Pump for automatically oil-fuel mixing |
| Cooling system | Air |
| Gearbox | 1-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Centrifugal clutch |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension | Dual hydraulic shock, Single A-arm |
| Rear suspension | Single hydraulic shock, Unit swing arm |
| Front tire | 19/7-8 |
| Rear tire | 18/10-8 |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Single disc |
| Physical measures and capacities |
|---|
| Dry weight | 130.0 kg (286.6 pounds) |
| Power/weight ratio | 0.0277 HP/kg |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall height | 940 mm (37.0 inches) |
| Overall length | 1660 mm (65.4 inches) |
| Overall width | 1050 mm (41.3 inches) |
| Ground clearance | 112 mm (4.4 inches) |
| Wheelbase | 1050 mm (41.3 inches) |
| Fuel capacity | 5.00 litres (1.32 US gallons) |
| Other specifications |
|---|
| Color options | White |
| Starter | Electric & kick |
