General information |
|
Model name
|

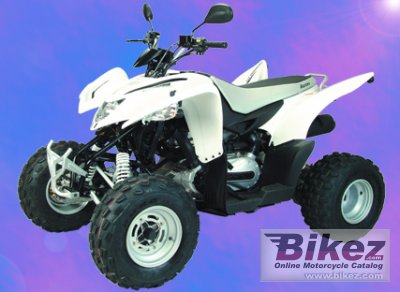

Aeon Cobra 320 |
|
Model year
|
2009 |
|
Category
|
ATV |
|
Rating
|
2.7 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
272.3 ccm (16.62 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
19.4 HP (14.2 kW)) @ 6500 RPM |
|
Torque
|
19.0 Nm (1.9 kgf-m or 14.0 ft.lbs) @ 5500 RPM |
|
Compression
|
10.3:1 |
|
Bore x stroke
|
72.7 x 65.6 mm (2.9 x 2.6 inches) |
|
Fuel system
|
Carburettor. Keihin PTG 22 |
|
Ignition
|
C.D.I. |
|
Lubrication system
|
Wet sump, Oil pump pressurized |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Centrifugal clutch |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tube |
|
Front suspension
|
Dual hydraulic shock, Double wishbone |
|
Front wheel travel
|
153 mm (6.0 inches) |
|
Rear suspension
|
Single hydraulic shock, Unit swing arm |
|
Rear wheel travel
|
165 mm (6.5 inches) |
|
Front tire
|
21/7-10 |
|
Rear tire
|
20/10-9 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
211.0 kg (465.2 pounds) |
|
Weight incl. oil, gas, etc
|
50.0 kg (110.2 pounds) |
|
Power/weight ratio
|
0.0921 HP/kg |
|
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1130 mm (44.5 inches) |
|
Overall length
|
1870 mm (73.6 inches) |
|
Overall width
|
1150 mm (45.3 inches) |
|
Ground clearance
|
170 mm (6.7 inches) |
|
Wheelbase
|
1300 mm (51.2 inches) |
|
Fuel capacity
|
7.30 litres (1.93 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
