General information |
|
Motorcycle name
|

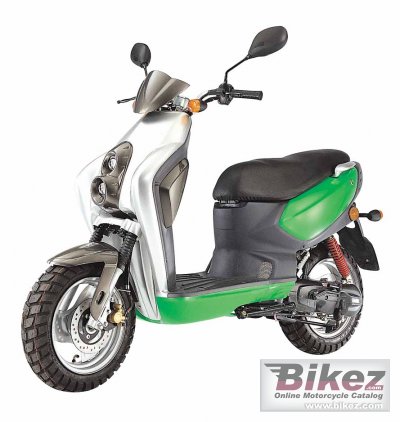

Adly Panther 100 |
|
Year of manufacture
|
2007 |
|
Type
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
95.6 ccm (5.83 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Bore x stroke
|
52.0 x 45.0 mm (2.0 x 1.8 inches) |
|
Fuel system
|
Carburettor. Mikuni VM-16 |
|
Ignition
|
CDI |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescope |
|
Rear suspension
|
Unit-Swing |
|
Front tire
|
120/70-12 |
|
Rear tire
|
120/70-12 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
83.0 kg (183.0 pounds) |
|
Seat height
|
815 mm (32.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1290 mm (50.8 inches) |
|
Overall length
|
1800 mm (70.9 inches) |
|
Overall width
|
785 mm (30.9 inches) |
|
Wheelbase
|
1240 mm (48.8 inches) |
|
Fuel capacity
|
6.20 litres (1.64 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
