General information |
|
Model name
|

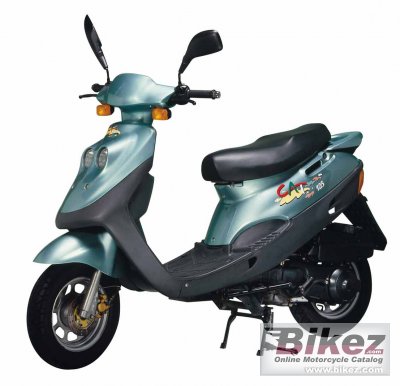

Adly Cat 125D |
|
Year of manufacture
|
2007 |
|
Type
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
124.0 ccm (7.57 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
8.4 HP (6.1 kW)) @ 7500 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
52.4 x 57.8 mm (2.1 x 2.3 inches) |
|
Ignition
|
CDI |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Hydraulic shock absorber |
|
Rear suspension
|
Hydraulic shock absorber |
|
Front tire
|
120/70-12 |
|
Rear tire
|
120/70-12 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
92.0 kg (202.8 pounds) |
|
Power/weight ratio
|
0.0913 HP/kg |
|
Overall height
|
1100 mm (43.3 inches) |
|
Overall length
|
1730 mm (68.1 inches) |
|
Overall width
|
680 mm (26.8 inches) |
|
Wheelbase
|
1240 mm (48.8 inches) |
|
Other specifications |
|
Starter
|
Electric & kick |
