| Adiva's profilation of this bike |

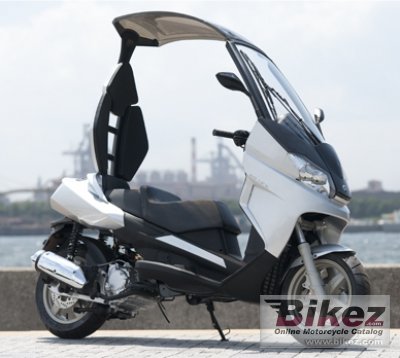

| When needed, AR can be “fitted out” with its protective shell, converting to a roadster with hard top while maintaining all of its characteristics of agility in traffic and easy use. |
|
General information |
|
Model name
|
Adiva AR 125 |
|
Year of manufacture
|
2011 |
|
Type
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
124.0 ccm (7.57 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
13.0 HP (9.5 kW)) @ 8500 RPM |
|
Torque
|
10.9 Nm (1.1 kgf-m or 8.0 ft.lbs) @ 7500 RPM |
|
Bore x stroke
|
48.8 x 57.0 mm (1.9 x 2.2 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Centrifugal |
|
Driveline
|
CVT with automatic clutch |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
high-resistance steel pipe and traily mixed frame |
|
Front suspension
|
Telescopic fork |
|
Rear suspension
|
Twin shock |
|
Front tire
|
120/70-14 |
|
Rear tire
|
140/70-14 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
171.0 kg (377.0 pounds) |
|
Power/weight ratio
|
0.0761 HP/kg |
|
Overall height
|
1759 mm (69.3 inches) |
|
Overall length
|
2180 mm (85.8 inches) |
|
Overall width
|
720 mm (28.3 inches) |
|
Wheelbase
|
1560 mm (61.4 inches) |
|
Fuel capacity
|
12.00 litres (3.17 US gallons) |
|
Other specifications |
|
Color options
|
Graphite, Silver, Black |
|
Starter
|
Electric |
|
Comments
|
Scooter with roof. |
