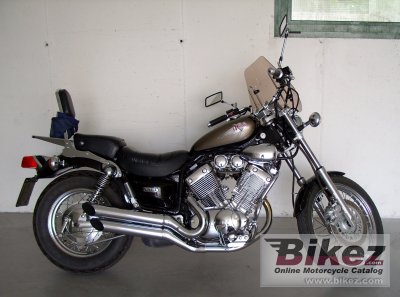

2001 Yamaha XV 535 DX Virago

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
Tip a friend
List related bikes

General information
Model:	Yamaha XV 535 DX Virago
Year:	2001
Category:	Custom / cruiser
Rating:	64.7 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:	535.00 ccm (32.65 cubic inches)
Engine type:	V2, four-stroke
Power:	44.00 HP (32.1 kW)) @ 7500 RPM
Torque:	46.00 Nm (4.7 kgf-m or 33.9 ft.lbs) @ 6000 RPM
Top speed:	155.0 km/h (96.3 mph)
Bore x stroke:	76.0 x 59.0 mm (3.0 x 2.3 inches)
Valves per cylinder:	2
Fuel system:	Carburettor
Gearbox:	5-speed
Transmission type, final drive:	Shaft drive (cardan)
Chassis, suspension, brakes and wheels
Front wheel travel:	150 mm (5.9 inches)
Rear wheel travel:	85 mm (3.3 inches)
Front brakes:	Single disc
Front brakes diameter:	298 mm (11.7 inches)
Rear brakes:	Expanding brake
Rear brakes diameter:	200 mm (7.9 inches)
Physical measures and capacities
Dry weight:	185.0 kg (407.9 pounds)
Power/weight ratio:	0.2378 HP/kg
Seat height:	720 mm (28.3 inches) If adjustable, lowest setting.
Wheelbase:	1,520 mm (59.8 inches)
Fuel capacity:	13.50 litres (3.57 gallons)
Other specifications
