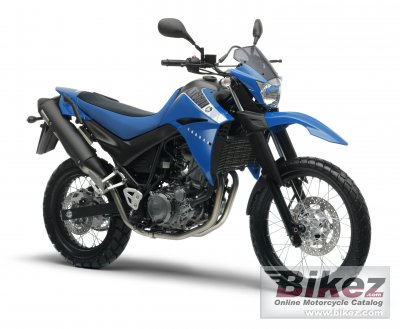

| Yamaha's profilation of this bike |
| Tall, light and slim, with a fuel-injected 660cc single-cylinder engine, the XT660R is built to explore the roughest terrain and to survive whatever the world throws at it. Itīs a highly evolved member of the legendary XT family, which thrives on long or short journeys - from once-in-a-lifetime adventures to the everyday commute. |
| General information |
|---|
| Model: | Yamaha XT660R | | Year: | 2013 | | Category: | Enduro / offroad | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 660.00 ccm (40.27 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Power: | 47.34 HP (34.6 kW)) @ 6000 RPM | | Torque: | 60.00 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 6100 RPM | | Compression: | 10.0:1 | | Bore x stroke: | 100.0 x 84.0 mm (3.9 x 3.3 inches) | | Valves per cylinder: | 4 | | Fuel system: | Injection. EFI | | Fuel control: | SOHC | | Ignition: | TCI | | Lubrication system: | Dry sump | | Cooling system: | Liquid | | Gearbox: | 5-speed | Transmission type,
final drive: | Chain | | Clutch: | Wet, multiple-disc coil spring | | Driveline: | Constant Mesh, 5-speed | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Steel tube, diamond shaped | | Rake (fork angle): | 27.0° | | Trail: | 107 mm (4.2 inches) | | Front suspension: | Telescopic forks | | Front suspension travel: | 225 mm (8.9 inches) | | Rear suspension: | Linked monoshock with spring preload adjustment | | Rear suspension travel: | 200 mm (7.9 inches) | | Front tyre dimensions: | 90/90-21 | | Rear tyre dimensions: | 130/80-17 | | Front brakes: | Single disc. Hydraulic | | Front brakes diameter: | 298 mm (11.7 inches) | | Rear brakes: | Single disc. Hydraulic | | Rear brakes diameter: | 245 mm (9.6 inches) | | Physical measures and capacities |
|---|
| Dry weight: | 165.0 kg (363.8 pounds) | | Weight incl. oil, gas, etc: | 181.0 kg (399.0 pounds) | | Power/weight ratio: | 0.2869 HP/kg | | Seat height: | 875 mm (34.4 inches) If adjustable, lowest setting. | | Overall height: | 1,230 mm (48.4 inches) | | Overall length: | 2,240 mm (88.2 inches) | | Overall width: | 845 mm (33.3 inches) | | Ground clearance: | 210 mm (8.3 inches) | | Wheelbase: | 1,505 mm (59.3 inches) | | Fuel capacity: | 15.00 litres (3.96 gallons) | | Oil capacity: | 2.90 litres (0.19 quarts) | | Other specifications |
|---|
| Starter: | Electric | | Color options: | Blue, white | | Further information |
|---|
