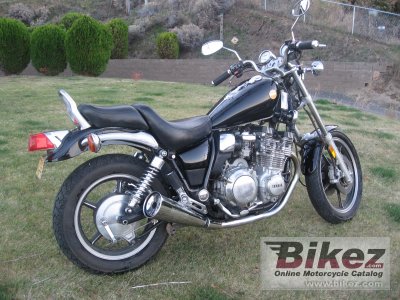

General information Model: Yamaha XJ 700 N Maxim Year: 1985 Category: Custom / cruiser Rating: 74.1 out of 100. Show full rating and compare with other bikes Price as new (MSRP): US$ 2999. Prices depend on country, taxes, accessories, etc. Engine and transmission Displacement: 696.00 ccm (42.47 cubic inches) Engine type: In-line four, four-stroke Power: 86.00 HP (62.8 kW)) @ 9000 RPM Torque: 61.80 Nm (6.3 kgf-m or 45.6 ft.lbs) @ 7500 RPM 1/4 mile (0.4 km): 12.560 seconds Max RPM: 9500 Compression: 9.8:1 Bore x stroke: 65.0 x 52.4 mm (2.6 x 2.1 inches) Valves per cylinder: 2 Fuel system: Carburettor. 4, 33mm Hitachi constant-velocity Fuel control: DOHC Ignition: Battery-powered, electronic, magnetic triggers Lubrication system: Wet sump, 3.2 qt Cooling system: Air Gearbox: 5-speed Transmission type, final drive: Shaft drive (cardan) Clutch: Wet , multi plate Fuel consumption: 5.02 litres/100 km (19.9 km/l or 46.86 mpg) Greenhouse gases: 116.5 CO 2 g/km. (CO2 - Carbon dioxide emission) Exhaust system: 4 into 2 Chassis, suspension, brakes and wheels Frame type: Double cradle Rake (fork angle): 31.5° Trail: 120 mm (4.7 inches) Front suspension: 38mm Kayaba telescopic fork Front suspension travel: 150 mm (5.9 inches) Rear suspension: Dual Kayaba dampers, adjustment for spring preload, swing arm Rear suspension travel: 99 mm (3.9 inches) Front tyre dimensions: 100/90-19 Rear tyre dimensions: 130/90-16 Front brakes: Double disc. double action calipers Front brakes diameter: 270 mm (10.6 inches) Rear brakes: Expanding brake (drum brake) Physical measures and capacities Dry weight: 219.0 kg (482.8 pounds) Weight incl. oil, gas, etc: 228.0 kg (502.7 pounds) Power/weight ratio: 0.3927 HP/kg Seat height: 750 mm (29.5 inches) If adjustable, lowest setting. Overall height: 1,160 mm (45.7 inches) Overall length: 2,235 mm (88.0 inches) Overall width: 775 mm (30.5 inches) Ground clearance: 145 mm (5.7 inches) Wheelbase: 1,520 mm (59.8 inches) Fuel capacity: 13.00 litres (3.43 gallons) Reserve fuel capacity: 3.00 litres (0.79 gallons) Oil capacity: 3.50 litres (0.23 quarts) Other specifications Starter: Electric Color options: Red or Black Further information
