General information |
|
Motorcycle name
|

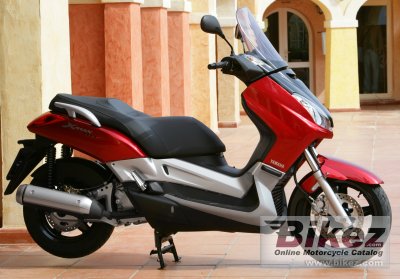

Yamaha X-Max 250 |
|
Model year
|
2006 |
|
Category
|
Scooter |
|
Rating
|
3.8 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
249.8 ccm (15.24 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
19.8 HP (14.5 kW)) @ 7500 RPM |
|
Torque
|
20.8 Nm (2.1 kgf-m or 15.3 ft.lbs) @ 6250 RPM |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
69.0 x 66.8 mm (2.7 x 2.6 inches) |
|
Fuel system
|
Carburettor |
|
Ignition
|
Electronic (C.D.I.) |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Clutch
|
Automatic centrifugal |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Hydraulic telescopic fork |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Hydraulic unit swing |
|
Rear wheel travel
|
105 mm (4.1 inches) |
|
Front tire
|
120/70-M15 |
|
Rear tire
|
140/70-M14 |
|
Front brakes
|
Single disc |
|
Diameter
|
267 mm (10.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
164.0 kg (361.6 pounds) |
|
Power/weight ratio
|
0.1210 HP/kg |
|
Seat height
|
785 mm (30.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1380 mm (54.3 inches) |
|
Overall length
|
2210 mm (87.0 inches) |
|
Overall width
|
770 mm (30.3 inches) |
|
Ground clearance
|
113 mm (4.4 inches) |
|
Wheelbase
|
1545 mm (60.8 inches) |
|
Fuel capacity
|
12.50 litres (3.30 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
