| General moped information |
|---|

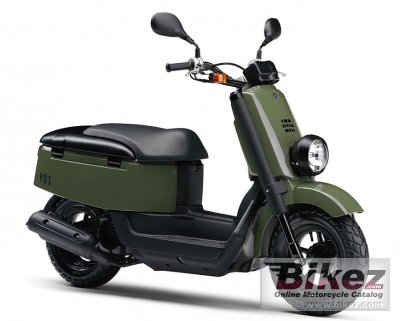

| Model: | Yamaha Vox |
| Year: | 2012 |
| Category: | Scooter |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 49.00 ccm (2.99 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 4.16 HP (3.0 kW)) @ 8000 RPM |
| Torque: | 3.90 Nm (0.4 kgf-m or 2.9 ft.lbs) @ 6500 RPM |
| Compression: | 12.0:1 |
| Bore x stroke: | 38.0 x 43.5 mm (1.5 x 1.7 inches) |
| Valves per cylinder: | 2 |
| Fuel system: | Injection |
| Fuel control: | Single Overhead Cams (SOHC) |
| Ignition: | TCI |
| Lubrication system: | Wet sump |
| Cooling system: | Air |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Clutch: | Dry, centrifugal shoe |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Backbone pipe |
| Rake (fork angle): | 26.0° |
| Trail: | 84 mm (3.3 inches) |
| Front suspension: | Telescopic |
| Rear suspension: | Swing unit |
| Front tyre: | 120/90-10 |
| Rear tyre: | 120/90-10 |
| Front brakes: | Expanding brake (drum brake) |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Dry weight: | 88.0 kg (194.0 pounds) |
| Power/weight ratio: | 0.0473 HP/kg |
| Seat height: | 735 mm (28.9 inches) If adjustable, lowest setting. |
| Overall length: | 1,855 mm (73.0 inches) |
| Ground clearance: | 115 mm (4.5 inches) |
| Wheelbase: | 1,280 mm (50.4 inches) |
| Fuel capacity: | 4.50 litres (1.19 gallons) |
| Oil capacity: | 0.80 litres (0.05 quarts) |
| Other specifications |
|---|
| Color options: | Dark gray, blue |
| Starter: | Electric |
| Carrying capacity: | 34 liters of storage space |
| Comments: | Sold in Japan |
