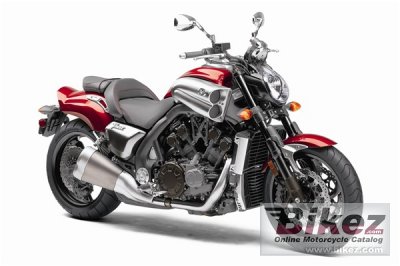

Yamaha VMAX 20102010 Yamaha VMAX specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| The ultimate power cruiser delivers unmatched performance from its 65-degree, four-valves-percylinder, 1679cc V4—plenty of eye-opening, controllable acceleration from a compact engine that looks as powerful as it is. |
| General information | |
|---|---|
| Model name | Yamaha VMAX |
| Model year | 2010 |
| Category | Custom / cruiser |
| Rating | 3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1679.0 ccm (102.45 cubic inches) |
| Engine type | V4, four-stroke |
| Compression | 11.3:1 |
| Bore x stroke | 90.0 x 66.0 mm (3.5 x 2.6 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Fuel Injection with YCC-T and YCC-I |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | TCI: Transistor Controlled Ignition |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Multiplate slipper clutch |
| Fuel consumption | 8.71 litres/100 km (11.5 km/l or 27.01 mpg) |
| Greenhouse gases | 202.1 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 31.0° |
| Trail | 147 mm (5.8 inches) |
| Front suspension | 52mm telescopic cartridge fork w/oxidized titanium coating. Fully adjustable preload, compression and rebound |
| Front wheel travel | 119 mm (4.7 inches) |
| Rear suspension | Single shock w/remote reservoir and remote adjustable for preload, compression and rebound |
| Front tire | 120/70-R18 |
| Rear tire | 200/50-R18 |
| Front brakes | Double disc. Wave-type discs; radial mount 6-piston calipers, Brembo® radial pump master cylinder |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Wave-type disc, single-piston caliper and Brembo® master cylinder |
| Diameter | 298 mm (11.7 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 309.8 kg (683.0 pounds) |
| Seat height | 775 mm (30.5 inches) If adjustable, lowest setting. |
| Overall height | 1189 mm (46.8 inches) |
| Overall length | 2395 mm (94.3 inches) |
| Overall width | 820 mm (32.3 inches) |
| Wheelbase | 1699 mm (66.9 inches) |
| Fuel capacity | 15.14 litres (4.00 US gallons) |
| Other specifications | |
| Color options | Candy Red/silver/black |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 Yamaha VMAX discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2010 Yamaha VMAX discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Yamaha bike | |
Reliability for the 2010 Yamaha VMAX:  (80.5 out of 100)Click here for complete rating. |
|
