| General information |
|---|

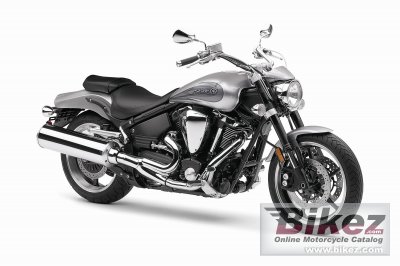

| Model: | Yamaha Star Warrior |
| Year: | 2012 |
| Category: | Custom / cruiser |
| Rating: | 70.7 out of 100. Show full rating and compare with other bikes |
| Price as new (MSRP): | US$ 13190. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 1671.58 ccm (102.00 cubic inches) |
| Engine type: | V2, four-stroke |
| Engine details: | 48° V-twin. Hydraulic valve lifters driven by twin camshafts. |
| Compression: | 8.4:1 |
| Bore x stroke: | 97.0 x 113.0 mm (3.8 x 4.4 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. Twin-Bore electronic fuel injection; throttle position sensor |
| Fuel control: | Overhead Valves (OHV) |
| Ignition: | TCI: Transistor Controlled Ignition |
| Lubrication system: | Dry-sump |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Belt |
| Fuel consumption: | 6.03 litres/100 km (16.6 km/l or 39.01 mpg) |
| Greenhouse gases: | 139.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Aluminum monoshock |
| Rake (fork angle): | 32.0° |
| Trail: | 102 mm (4.0 inches) |
| Front suspension: | 41mm KYB inverted fork |
| Front wheel travel: | 135 mm (5.3 inches) |
| Rear suspension: | Single shock |
| Rear wheel travel: | 109 mm (4.3 inches) |
| Front tyre: | 120/70-ZR18 |
| Rear tyre: | 200/50-ZR17 |
| Front brakes: | Double disc. Hydraulic |
| Front brakes diameter: | 298 mm (11.7 inches) |
| Rear brakes: | Single disc. Hydraulic |
| Rear brakes diameter: | 282 mm (11.1 inches) |
| Wheels: | 5-spoke cast |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 294.8 kg (650.0 pounds) |
| Seat height: | 714 mm (28.1 inches) If adjustable, lowest setting. |
| Overall height: | 1,120 mm (44.1 inches) |
| Overall length: | 2,385 mm (93.9 inches) |
| Overall width: | 935 mm (36.8 inches) |
| Wheelbase: | 1,666 mm (65.6 inches) |
| Fuel capacity: | 15.14 litres (4.00 gallons) |
| Other specifications |
|---|
| Color options: | Liquid Silver |
| Starter: | Electric |
| Instruments: | Digital headlight-mounted tachometer, odometer and dual tripmeters with triple clamp-mounted analog speedometer. |
| Light: | 12V 60/55-watt multi-reflector halogen headlight |
| Carrying capacity: | . |
| Factory warranty: | 12 months |
