10 Yamaha Star Raider S specificationsYamaha Star Raider S 2010

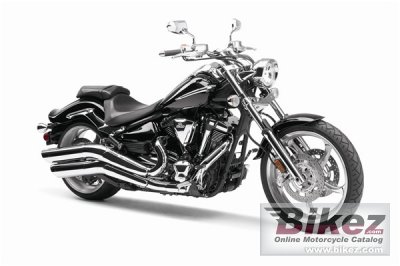

2010 Yamaha Star Raider S photo
Picture credits - Yamaha. Click to submit more pictures.
   Show big 2010 Yamaha Star Raider S imageShow more 2010 Yamaha Star Raider S images
2010 Yamaha Star Raider S

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Yamaha's profilation of this bike
Style, performance, attitude, and an extra splash of chrome. You might as well have it all. S model gets even more chrome: chrome triple clamps, fork sliders, air box cover, engine covers, headlight housing, handlebar risers, etc.

General information
Model:Yamaha Star Raider S
Year:2010
Category:Custom / cruiser
Rating:76.1 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 14790. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:1851.85 ccm (113.00 cubic inches)
Engine type:V2, four-stroke
Compression:9.5:1
Bore x stroke:100.0 x 118.0 mm (3.9 x 4.6 inches)
Valves per cylinder:4
Fuel system:Injection. Twin-Bore electronic fuel injection; throttle position sensor
Fuel control:OHV
Ignition:TCI: Transistor Controlled Ignition
Cooling system:Air
Gearbox:5-speed
Transmission type,
final drive:
Belt
Clutch:Wet multiplate clutch
Fuel consumption:5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Greenhouse gases:129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis, suspension, brakes and wheels
Frame type:Double cradle
Front suspension:Telescopic fork
Front suspension travel:130 mm (5.1 inches)
Rear suspension:Swingarm
Rear suspension travel:89 mm (3.5 inches)
Front tyre dimensions:120/70-21
Rear tyre dimensions:210/40-R18
Front brakes:Double disc
Front brakes diameter:298 mm (11.7 inches)
Rear brakes:Single disc
Rear brakes diameter:310 mm (12.2 inches)
Physical measures and capacities
Weight incl. oil, gas, etc:331.1 kg (730.0 pounds)
Seat height:696 mm (27.4 inches) If adjustable, lowest setting.
Overall height:1,166 mm (45.9 inches)
Overall length:2,570 mm (101.2 inches)
Overall width:925 mm (36.4 inches)
Wheelbase:1,801 mm (70.9 inches)
Fuel capacity:15.51 litres (4.10 gallons)
Other specifications
Starter:Electric
Color options:Raven, Deep Blue
