09 Yamaha Raptor 90 specificationsYamaha Raptor 90 2009

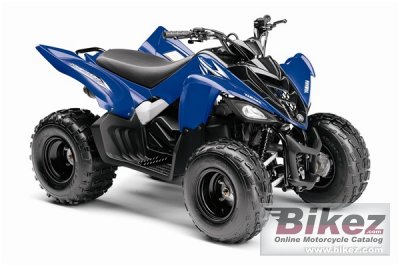

2009 Yamaha Raptor 90 photo
Picture credits - Yamaha. Click to submit more pictures.
   Show big 2009 Yamaha Raptor 90 imageShow more 2009 Yamaha Raptor 90 images
2009 Yamaha Raptor 90

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



Yamaha's profilation of this bike
Available in Team Yamaha Blue/White, just like full-size ATVs, or in an exclusive Black/White version with two graphics choices young riders will love.

General information
Model:Yamaha Raptor 90
Year:2009
Category:ATV
Rating:63 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):US$ 2299. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:88.00 ccm (5.37 cubic inches)
Engine type:Single cylinder, four-stroke
Compression:10.2:1
Bore x stroke:47.0 x 51.0 mm (1.9 x 2.0 inches)
Fuel control:SOHC
Ignition:DC-CDI
Cooling system:Air
Gearbox:5-speed
Transmission type,
final drive:
Chain
Chassis, suspension, brakes and wheels
Front suspension:Independent double wishbone
Front suspension travel:127 mm (5.0 inches)
Rear suspension:Swingarm
Rear suspension travel:127 mm (5.0 inches)
Front tyre dimensions:18/7-8
Rear tyre dimensions:18/9-8
Front brakes:Expanding brake (drum brake)
Rear brakes:Single disc
Physical measures and capacities
Dry weight:115.2 kg (254.0 pounds)
Seat height:653 mm (25.7 inches) If adjustable, lowest setting.
Overall height:909 mm (35.8 inches)
Overall length:1,491 mm (58.7 inches)
Overall width:884 mm (34.8 inches)
Ground clearance:1,000 mm (39.4 inches)
Fuel capacity:4.92 litres (1.30 gallons)
Other specifications
Starter:Electric & kick
Color options:Team Yamaha Blue/White, Black/White w/choice of graphics
Comments:2WD
Further information
Parts and accessories Our partner CMSNL ships low cost OEM motorcycle parts to Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, The Netherlands, New Zealand, Norway, Poland, Portugal, Serbia, Slovakia, Slovenia, South Africa, Spain, Sweden, Switzerland, Taiwan, Ukraine, United Kingdom, The United States and more. Or check out parts and accessories from our other partners.
Ask questionsJoin the 09 Yamaha Raptor 90 discussion group.
Insurance, loans, tests Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc.
Related bikesList related bikes for comparison of specs



Buying a bike starts at Bikez

Get a list of related motorbikes before you buy this Yamaha. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc.

Show any 2009 Yamaha Raptor 90 for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free.

You are also welcome to read and submit motorcycle reviews.


Rating sample for this Yamaha bike
Offroad capabilities for the 2009 Yamaha Raptor 90:


(50.0 out of 100)

Click here for complete rating. You can also compare bikes.
