| Yamaha's profilation of this bike |
| Lightest production sport ATV ever provides amazingly nimble handling and a great power-to-weight ratio, for a ride beginners and more experienced riders alike will appreciate. |
| General information |
|---|

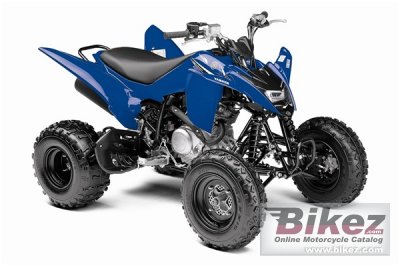

| Model: | Yamaha Raptor 125 | | Year: | 2011 | | Category: | ATV | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Price as new (MSRP): | US$ 3399. Prices depend on country, taxes, accessories, etc. | | Engine and transmission |
|---|
| Displacement: | 124.00 ccm (7.57 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Compression: | 10.0:1 | | Bore x stroke: | 54.0 x 54.0 mm (2.1 x 2.1 inches) | | Fuel system: | Carburettor. Mikuni 29mm BSR | | Fuel control: | SOHC | | Ignition: | DC-CDI | | Cooling system: | Air | | Gearbox: | 5-speed | Transmission type,
final drive: | Chain | | Driveline: | 2WD; sealed O-ring chain, eccentric adjustment | | Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Independent double wishbone | | Front suspension travel: | 127 mm (5.0 inches) | | Rear suspension: | Swingarm: 7.9-in travel | | Front tyre dimensions: | 19/6-Ma10 | | Rear tyre dimensions: | 18/9-Ma8 | | Front brakes: | Double disc | | Rear brakes: | Single disc | | Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 135.6 kg (299.0 pounds) | | Seat height: | 714 mm (28.1 inches) If adjustable, lowest setting. | | Overall height: | 1,011 mm (39.8 inches) | | Overall length: | 1,610 mm (63.4 inches) | | Overall width: | 1,016 mm (40.0 inches) | | Ground clearance: | 10,000 mm (393.7 inches) | | Wheelbase: | 1,110 mm (43.7 inches) | | Fuel capacity: | 9.08 litres (2.40 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Light: | Single 35/36.5W headlight and 21W/5W brakelight | | Factory warranty: | 6 Month (Limited Factory Warranty) | | Color options: | Team Yamaha Blue/White, White w/Graphics Kit | | Further information |
|---|
