| General moped information |
|---|

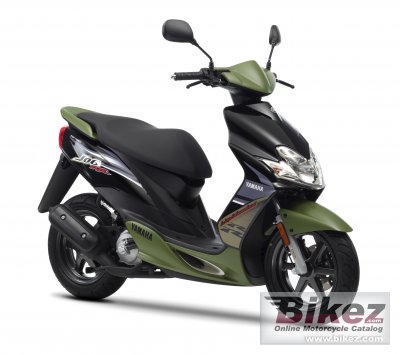

| Model: | Yamaha Jog RR |
| Year: | 2013 |
| Category: | Scooter |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 49.00 ccm (2.99 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Power: | 3.38 HP (2.5 kW)) @ 7000 RPM |
| Torque: | 2.97 Nm (0.3 kgf-m or 2.2 ft.lbs) @ 6500 RPM |
| Compression: | 11.4:1 |
| Bore x stroke: | 40.0 x 39.2 mm (1.6 x 1.5 inches) |
| Fuel system: | Carburettor. Gurtner PY12 |
| Ignition: | CDI |
| Lubrication system: | Separate lubrication |
| Cooling system: | Liquid |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Telescopic fork |
| Front wheel travel: | 70 mm (2.8 inches) |
| Rear suspension: | Unit swing |
| Rear wheel travel: | 60 mm (2.4 inches) |
| Front tyre: | 110/70-12 |
| Rear tyre: | 120/70-12 |
| Front brakes: | Single disc |
| Front brakes diameter: | 190 mm (7.5 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Rear brakes diameter: | 110 mm (4.3 inches) |
| Wheels: | Aluminium, 6-spoke |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 84.0 kg (185.2 pounds) |
| Seat height: | 770 mm (30.3 inches) If adjustable, lowest setting. |
| Overall length: | 1,740 mm (68.5 inches) |
| Ground clearance: | 132 mm (5.2 inches) |
| Wheelbase: | 1,210 mm (47.6 inches) |
| Fuel capacity: | 5.50 litres (1.45 gallons) |
| Other specifications |
|---|
| Color options: | Black/green, White/red |
| Starter: | Electric & kick |
| Carrying capacity: | Under-seat helmet storage compartment |
