| Yamaha's profilation of this bike |
| Jog R, the practical scooter with the sporting personality. This is the ideal machine for getting out and about, meeting friends, sharing life’s pleasures and making the most of your time, and it’s designed for some sporting action whenever the mood takes you.
|
| General moped information |
|---|

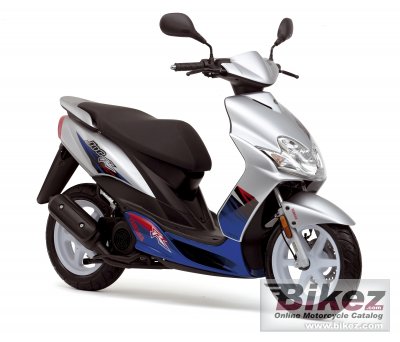

| Model: | Yamaha Jog R | | Year: | 2007 | | Category: | Scooter | | Rating: | 65.1 out of 100. Show full rating and compare with other bikes | | Engine and transmission |
|---|
| Displacement: | 49.00 ccm (2.99 cubic inches) | | Engine type: | Single cylinder, two-stroke | | Power: | 2.15 HP (1.6 kW)) @ 6750 RPM | | Torque: | 2.46 Nm (0.3 kgf-m or 1.8 ft.lbs) @ 4500 RPM | | Compression: | 10.2:1 | | Bore x stroke: | 40.0 x 39.2 mm (1.6 x 1.5 inches) | | Fuel system: | Carburettor. Gurtner PY12 | | Ignition: | Electric (CDI) | | Lubrication system: | Separate lubrication | | Cooling system: | Air | Transmission type,
final drive: | Belt | | Clutch: | Automatic centrifugal | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Front suspension system: | | Front suspension: | Hydraulic and telescopic fork | | Rear suspension: | Single Shock | | Front tyre dimensions: | 110/70-12 | | Rear tyre dimensions: | 130/70-12 | | Front brakes: | Single disc | | Front brakes diameter: | 190 mm (7.5 inches) | | Rear brakes: | Expanding brake (drum brake) | | Rear brakes diameter: | 110 mm (4.3 inches) | | Physical measures and capacities |
|---|
| Dry weight: | 76.0 kg (167.6 pounds) | | Power/weight ratio: | 0.0283 HP/kg | | Seat height: | 770 mm (30.3 inches) If adjustable, lowest setting. | | Overall height: | 1,065 mm (41.9 inches) | | Overall length: | 1,740 mm (68.5 inches) | | Overall width: | 675 mm (26.6 inches) | | Ground clearance: | 132 mm (5.2 inches) | | Wheelbase: | 1,210 mm (47.6 inches) | | Fuel capacity: | 5.50 litres (1.45 gallons) | | Other specifications |
|---|
| Starter: | Electric & kick | | Further information |
|---|
| Parts and accessories | Our partner CMSNL
ships low cost OEM motorcycle parts to
Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany,
Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro,
The Netherlands, New Zealand, Norway, Poland, Portugal, Serbia, Slovakia, Slovenia, South Africa, Spain, Sweden, Switzerland,
Taiwan, Ukraine, United Kingdom, The United States and more. Or check out parts and accessories from our other partners. |
| Ask questions | Join the 07 Yamaha Jog R discussion group. |
| Insurance, loans, tests
| Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs |
