| General information |
|---|

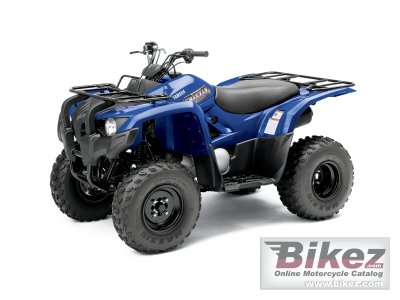

| Model: | Yamaha Grizzly 300 Automatic |
| Year: | 2012 |
| Category: | ATV |
| Rating: | 62 out of 100. Show full rating and compare with other bikes |
| Price as new (MSRP): | US$ 4099. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 287.00 ccm (17.51 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Compression: | 8.6:1 |
| Bore x stroke: | 75.0 x 65.0 mm (3.0 x 2.6 inches) |
| Fuel system: | Carburettor |
| Fuel control: | Single Overhead Cams (SOHC) |
| Ignition: | CDI |
| Cooling system: | Liquid |
| Gearbox: | Automatic |
Transmission type,
final drive: | Shaft drive (cardan) |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Independent double wishbone |
| Front wheel travel: | 150 mm (5.9 inches) |
| Rear suspension: | Swingarm |
| Rear wheel travel: | 165 mm (6.5 inches) |
| Front tyre: | 25/8-12 |
| Rear tyre: | 25/10-12 |
| Front brakes: | Double disc. Hydraulic |
| Rear brakes: | Single disc |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 231.8 kg (511.0 pounds) |
| Seat height: | 792 mm (31.2 inches) If adjustable, lowest setting. |
| Overall height: | 1,125 mm (44.3 inches) |
| Overall length: | 1,895 mm (74.6 inches) |
| Overall width: | 1,069 mm (42.1 inches) |
| Ground clearance: | 137 mm (5.4 inches) |
| Wheelbase: | 1,199 mm (47.2 inches) |
| Fuel capacity: | 10.60 litres (2.80 gallons) |
| Other specifications |
|---|
| Color options: | Hunter Green, Steel Blue |
| Starter: | Electric |
| Electrical: | Maintenance-free 12-amp-hour battery |
| Light: | Dual headlights and 21/5W brakelight |
| Factory warranty: | 6 Month (Limited Factory Warranty) |
