General information |
|
Model name
|

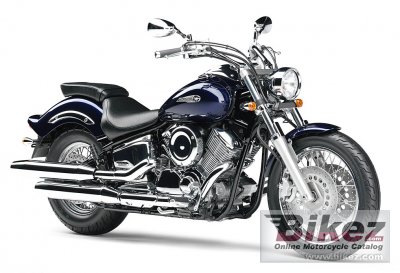

Yamaha DS11 Drag Star Eleven 1100 |
|
Year
|
2011 |
|
Category
|
Custom / cruiser |
|
Rating
|
2.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1063.0 ccm (64.86 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
60.4 HP (44.1 kW)) @ 5750 RPM |
|
Torque
|
82.0 Nm (8.4 kgf-m or 60.5 ft.lbs) @ 2500 RPM |
|
Compression
|
8.3:1 |
|
Bore x stroke
|
95.0 x 75.0 mm (3.7 x 3.0 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. BSR37 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
T.C.I. Formula |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Wet multiple plate coil springs |
|
Driveline
|
Shaft/2.874 (44/47×19/18×32/11). Primary drive: Gear/1.659 (78/47). |
|
Fuel consumption
|
3.13 litres/100 km (31.9 km/l or 75.15 mpg) |
|
Greenhouse gases
|
72.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double cradle |
|
Rake (fork angle)
|
33.0° |
|
Trail
|
136 mm (5.4 inches) |
|
Front tire
|
110/90-M18 |
|
Rear tire
|
170/80-M15 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
262.0 kg (577.6 pounds) |
|
Weight incl. oil, gas, etc
|
278.0 kg (612.9 pounds) |
|
Power/weight ratio
|
0.2303 HP/kg |
|
Seat height
|
690 mm (27.2 inches) If adjustable, lowest setting. |
|
Overall height
|
1100 mm (43.3 inches) |
|
Overall length
|
2405 mm (94.7 inches) |
|
Overall width
|
895 mm (35.2 inches) |
|
Wheelbase
|
1640 mm (64.6 inches) |
|
Fuel capacity
|
17.00 litres (4.49 US gallons) |
|
Oil capacity
|
3.60 litres (3.8 US quarts) |
|
Other specifications |
|
Starter
|
Electric |
|
Comments
|
Sold in Japan. |
