| Yamaha's profilation of this bike |
| Whether popping into town to see friends, or navigating traffic on a time-crucial errand, the BW’s Next Generation is as dependable as it is versatile. |
| General moped information |
|---|

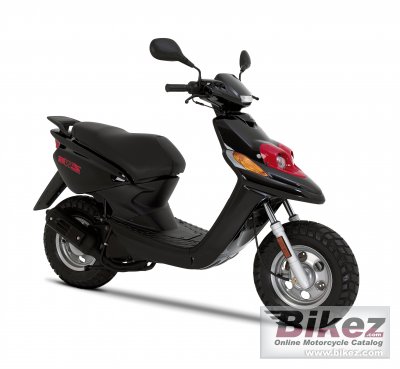

| Model: | Yamaha BWs Next Generation | | Year: | 2010 | | Category: | Scooter | | Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. | | Engine and transmission |
|---|
| Displacement: | 49.20 ccm (3.00 cubic inches) | | Engine type: | Single cylinder, two-stroke | | Power: | 3.62 HP (2.6 kW)) @ 6800 RPM | | Torque: | 4.00 Nm (0.4 kgf-m or 3.0 ft.lbs) @ 5000 RPM | | Compression: | 11.2:1 | | Bore x stroke: | 40.0 x 39.2 mm (1.6 x 1.5 inches) | | Ignition: | CDI | | Lubrication system: | Separate lubrication | | Cooling system: | Air | | Gearbox: | Automatic | Transmission type,
final drive: | Belt | | Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Telescopic fork | | Front suspension travel: | 70 mm (2.8 inches) | | Rear suspension: | Unit swing | | Rear suspension travel: | 70 mm (2.8 inches) | | Front tyre dimensions: | 120/90-10 | | Rear tyre dimensions: | 130/90-10 | | Front brakes: | Single disc | | Front brakes diameter: | 190 mm (7.5 inches) | | Rear brakes: | Expanding brake (drum brake) | | Rear brakes diameter: | 110 mm (4.3 inches) | | Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 83.0 kg (183.0 pounds) | | Seat height: | 803 mm (31.6 inches) If adjustable, lowest setting. | | Overall height: | 1,120 mm (44.1 inches) | | Overall length: | 1,746 mm (68.7 inches) | | Overall width: | 675 mm (26.6 inches) | | Ground clearance: | 153 mm (6.0 inches) | | Wheelbase: | 1,206 mm (47.5 inches) | | Fuel capacity: | 6.50 litres (1.72 gallons) | | Other specifications |
|---|
| Starter: | Electric & kick | | Color options: | Steel, silver | | Further information |
|---|
