| General information |
|---|

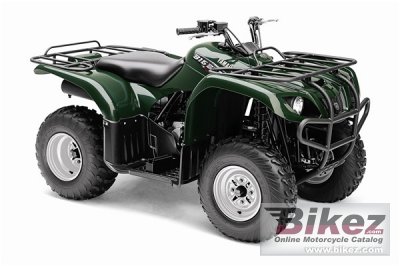

| Model: | Yamaha Big Bear 250 |
| Year: | 2009 |
| Category: | ATV |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 230.00 ccm (14.03 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 4 |
| Compression: | 8.7:1 |
| Bore x stroke: | 71.0 x 58.0 mm (2.8 x 2.3 inches) |
| Fuel system: | Carburettor. Mikuni® 33mm BSR |
| Fuel control: | SOHC |
| Ignition: | DC - CDI |
| Starter: | Electric |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type
final drive: | Shaft drive (cardan) |
| Physical measures |
|---|
| Dry weight: | 206.8 kg (456.0 pounds) |
| Seat height: | 780 mm (30.7 inches) If adjustable, lowest setting. |
| Overall height: | 1,118 mm (44.0 inches) |
| Overall length: | 1,915 mm (75.4 inches) |
| Overall width: | 1,039 mm (40.9 inches) |
| Ground clearance: | 150 mm (5.9 inches) |
| Wheelbase: | 1,171 mm (46.1 inches) |
| Chassis and dimensions |
|---|
| Front suspension: | McPherson strut, 4.9-in travel |
| Rear suspension: | Swingarm |
| Front tyre dimensions: | 25/7-12 |
| Rear tyre dimensions: | 25/10-12 |
| Front brakes: | Double disc |
| Rear brakes: | Expanding brake (drum brake) |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 12.11 litres (3.20 gallons) |
| Color options: | Black Metalic, Hunter Green |
| Comments: | 2WD. Electric and pull start. |
