| General information |
|---|

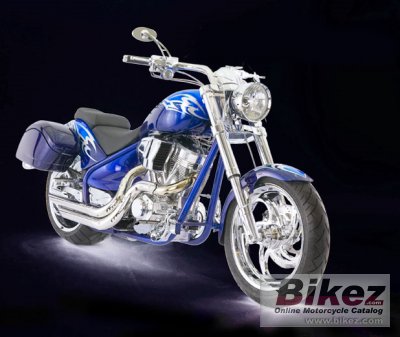

| Model: | Viper Diablo Deluxe |
| Year: | 2009 |
| Category: | Custom / cruiser |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 2490.99 ccm (152.00 cubic inches) |
| Engine type: | V2, four-stroke |
| Fuel system: | Carburettor. Mikuni HSR 45 Flat Slide |
| Lubrication system: | Dry Sump Oiling System Utilizing Proprietary Oil in the Frame Technology |
| Cooling system: | Air |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Belt |
| Exhaust system: | Stainless steel, optional chrome |
| Chassis, suspension, brakes and wheels |
|---|
| Rake (fork angle): | 34.0° |
| Front suspension: | Inverted Adjustable Cartridge Forks |
| Rear suspension: | Viper Oil Dampened Adjust-on-the-Fly Air-Ride Rear Suspension |
| Front tyre dimensions: | 130/70-18 |
| Rear tyre dimensions: | 260/40-18 |
| Front brakes: | Single disc. 4-piston caliper |
| Rear brakes: | Single disc. 4-piston caliper |
| Physical measures and capacities |
|---|
| Dry weight: | 272.1 kg (599.9 pounds) |
| Seat height: | 610 mm (24.0 inches) If adjustable, lowest setting. |
| Overall length: | 2,438 mm (96.0 inches) |
| Oil capacity: | 4.20 litres (0.28 quarts) |
| Other specifications |
|---|
| Color options: | Any color |
