| Viper's profilation of this bike |
| Classic styling on the cutting edge. |
| General information |
|---|

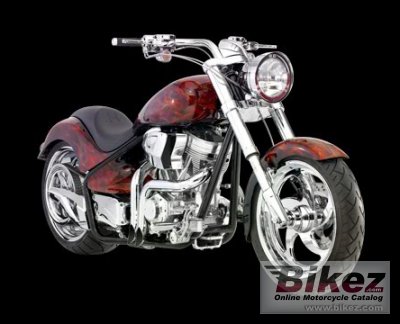

| Model: | Viper Diablo |
| Year: | 2009 |
| Category: | Custom / cruiser |
| Rating: | 66.7 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 2490.99 ccm (152.00 cubic inches) |
| Engine type: | V2, four-stroke |
| Fuel system: | Carburettor. Mikuni HSR 45 Flat Slide |
| Lubrication system: | Viper Dry Sump Oiling System Utilizing Proprietary Oil in the Frame Technology |
| Cooling system: | Air |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Belt |
| Clutch: | Hydraulic High Performance Rivera |
| Exhaust system: | Tuned 2 into 1 |
| Chassis, suspension, brakes and wheels |
|---|
| Rake (fork angle): | 34.0° |
| Front suspension: | Marzocchi Inverted Adjustable Cartridge Forks |
| Rear suspension: | Viper Oil Dampened Adjust-on-the-Fly Air-Ride Rear Suspension |
| Front tyre: | 130/70-18 |
| Rear tyre: | 260/40-18 |
| Front brakes: | Single disc. 4-piston caliper |
| Rear brakes: | Single disc. 4-piston caliper |
| Physical measures and capacities |
|---|
| Dry weight: | 272.2 kg (600.0 pounds) |
| Seat height: | 610 mm (24.0 inches) If adjustable, lowest setting. |
| Overall length: | 2,438 mm (96.0 inches) |
| Oil capacity: | 4.20 litres (0.28 quarts) |
| Other specifications |
|---|
| Color options: | Viper Red, Viper Black, Viper Blue/Silver, Custom Flame |
| Comments: | Viper Billet Aluminum engine. |
