| General information |
|---|

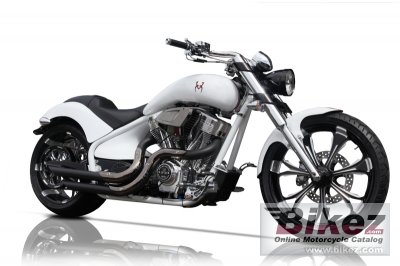

| Model: | Viper Black Diamond |
| Year: | 2013 |
| Category: | Custom / cruiser |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 2490.99 ccm (152.00 cubic inches) |
| Engine type: | V2, four-stroke |
| Engine details: | 45 Degree V-Twin |
| Fuel system: | Carburettor. Mikuni HSR 45 Flat Slide |
| Lubrication system: | Dry sump with oil in the frame |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Belt |
| Clutch: | Rivera |
| Driveline: | Rivera Pro 6-Speed with Over-Drive. Primary drive: Hydraulic Chain. Final drive: Patented Viper Rigid Belt Drive. |
| Exhaust system: | Tuned 2 into 1 |
| Chassis, suspension, brakes and wheels |
|---|
| Rake (fork angle): | 33.0° |
| Front suspension: | Marzocchi Inverted Adjustable Forks |
| Rear suspension: | Viper Chrome Billet Aluminum Swing Arm with Viper Oil Dampened Adjustable Air-Ride |
| Front tyre dimensions: | 120/70-21 |
| Rear tyre dimensions: | 260/40-18 |
| Front brakes: | Single disc. 4-piston, chromed |
| Rear brakes: | Single disc |
| Wheels: | 5-spoke chrome. Metzeler tyres. |
| Physical measures and capacities |
|---|
| Dry weight: | 299.4 kg (660.0 pounds) |
| Seat height: | 610 mm (24.0 inches) If adjustable, lowest setting. |
| Wheelbase: | 1,803 mm (71.0 inches) |
| Oil capacity: | 4.20 litres (0.28 quarts) |
| Other specifications |
|---|
| Instruments: | Multi-Functional Digital Gauges |
| Electrical: | Viper Wiring Harness with 40amp. 3 Phase Charging System |
| Color options: | Black/yellow. |
| Comments: | Made in the US. Limited edition of 25 bikes. Optional accessories package. |
