| General information |
|---|

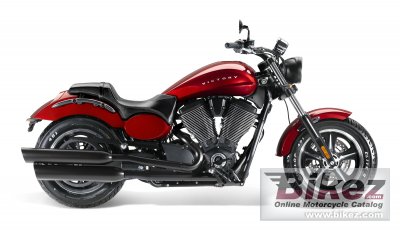

| Model: | Victory Judge |
| Year: | 2013 |
| Category: | Custom / cruiser |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Price as new (MSRP): | US$ 13999. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 1737.14 ccm (106.00 cubic inches) |
| Engine type: | V2, four-stroke |
| Engine details: | Self-adjusting cam chains, hydraulic lifters |
| Torque: | 12.00 Nm (1.2 kgf-m or 8.9 ft.lbs) |
| Compression: | 9.4:1 |
| Bore x stroke: | 101.0 x 108.0 mm (4.0 x 4.3 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. Electronic Fuel Injection with dual 45mm throttle body |
| Fuel control: | SOHC |
| Cooling system: | Oil & air |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Belt |
| Clutch: | Wet, multi-plate |
| Driveline: | Carbon Fiber Reinforced Belt. Primary drive: Gear drive with torque compensator. |
| Exhaust system: | Staggered slash-cut dual exhaust with crossover |
| Chassis, suspension, brakes and wheels |
|---|
| Rake (fork angle): | 31.7° |
| Trail: | 170 mm (6.7 inches) |
| Front suspension: | Conventional telescopic fork, 43 mm diameter, 5.1 in / 130 mm travel |
| Rear suspension: | Single, mono-tube gas, cast aluminum with rising rate linkage, 3.0 in / 75 mm travel, preload adjustable spring |
| Front tyre dimensions: | 130/90-B16 |
| Rear tyre dimensions: | 140/90-B16 |
| Front brakes: | Single disc. Floating rotor with 4-piston calipers. |
| Front brakes diameter: | 300 mm (11.8 inches) |
| Rear brakes: | Single disc. Floating rotor with 2-piston caliper. |
| Rear brakes diameter: | 300 mm (11.8 inches) |
| Wheels: | 130/90 B16 67H Dunlop 491 Elite II-RWL |
| Physical measures and capacities |
|---|
| Dry weight: | 299.4 kg (660.0 pounds) |
| Seat height: | 658 mm (25.9 inches) If adjustable, lowest setting. |
| Overall length: | 2,337 mm (92.0 inches) |
| Ground clearance: | 119 mm (4.7 inches) |
| Wheelbase: | 1,646 mm (64.8 inches) |
| Fuel capacity: | 17.03 litres (4.50 gallons) |
| Oil capacity: | 4.70 litres (0.31 quarts) |
| Other specifications |
|---|
| Starter: | Electric |
| Electrical: | 12 volts / 18 amp hours battery. |
| Color options: | Gloss Black, Gloss Sunset Red, Suede Nuclear Sunset |
