General information |
Model
|

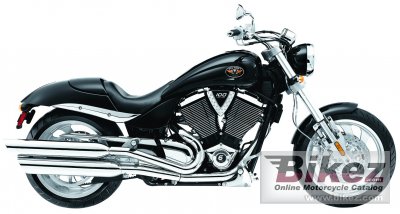

Victory Hammer |
Year
|
2005 |
Category
|
Custom / cruiser |
Price as new | US$ 16499. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.9 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
1638.8 ccm (100.00 cubic inches) |
Engine type
|
V2, four-stroke |
Compression
|
9.8:1 |
Bore x stroke
|
101.0 x 102.0 mm (4.0 x 4.0 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Injection. Electronic Fuel Injection with 44mm throttle bodies |
Fuel control
|
Single Overhead Cams (SOHC) |
Cooling system
|
Oil & air |
Gearbox
|
6-speed |
Transmission type
|
Belt (final drive) |
Clutch
|
Wet, multi-plate |
Exhaust system
|
Large bore slash-cut dual exhaust with common volume |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
33.1° |
Front suspension
|
Inverted cartridge telescopic fork, 43mm fork tube, 5.1in |
Front wheel travel
|
130 mm (5.1 inches) |
Rear suspension
|
Single, mono-tube gas, Forged and Cast Aluminum with rising rate linkage swing-arm. Preload adjustable spring |
Rear wheel travel
|
100 mm (3.9 inches) |
Front tire
|
130/70-R18 |
Rear tire
|
250/40-R18 |
Front brakes
|
Single disc. Floating rotor with 4-piston caliper |
Diameter
|
300 mm (11.8 inches) |
Rear brakes
|
Single disc. Floating rotor with 2-piston caliper |
Diameter
|
300 mm (11.8 inches) |
Physical measures and capacities |
Dry weight
|
298.0 kg (657.0 pounds) |
Overall height
|
671 mm (26.4 inches) |
Ground clearance
|
147 mm (5.8 inches) |
Wheelbase
|
1669 mm (65.7 inches) |
Fuel capacity
|
17.03 litres (4.50 US gallons) |
Other specifications |
Color options
|
Solid Colors: Black, Indy Red, Cosmic Sunburst, Flame Yellow.
Multiple Colors: Indy Red with Tribal Tattoo, Toxic Green with Tribal Tattoo.
|
Starter
|
Electric |
