| General information |
|---|

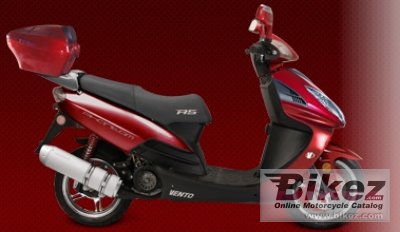

| Model: | Vento Phantom R5 |
| Year: | 2013 |
| Category: | Scooter |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 150.00 ccm (9.15 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 9.40 HP (6.9 kW)) @ 7600 RPM |
| Torque: | 8.54 Nm (0.9 kgf-m or 6.3 ft.lbs) @ 5100 RPM |
| Bore x stroke: | 57.4 x 57.8 mm (2.3 x 2.3 inches) |
| Fuel system: | Injection |
| Ignition: | CDI |
| Cooling system: | Air |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Exhaust system: | Silvertone bullet exhaust pipe |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Telescopic hydraulic fork |
| Rear suspension: | Hydraulic, twin shock |
| Front tyre dimensions: | 130/60-13 |
| Rear tyre dimensions: | 130/60-13 |
| Front brakes: | Single disc. Hydraulic |
| Rear brakes: | Single disc. Hydraulic |
| Wheels: | Lightweight Cast-Aluminum 3-Spoke |
| Physical measures and capacities |
|---|
| Dry weight: | 103.9 kg (229.0 pounds) |
| Power/weight ratio: | 0.0905 HP/kg |
| Seat height: | 975 mm (38.4 inches) If adjustable, lowest setting. |
| Overall height: | 1,290 mm (50.8 inches) |
| Overall length: | 1,890 mm (74.4 inches) |
| Fuel capacity: | 5.29 litres (1.40 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Light: | Dual front light |
| Seat: | Silktouch polyurethane seat |
| Factory warranty: | 1 year/5000 miles limited warranty. |
| Color options: | Red |
