| General information |
|---|

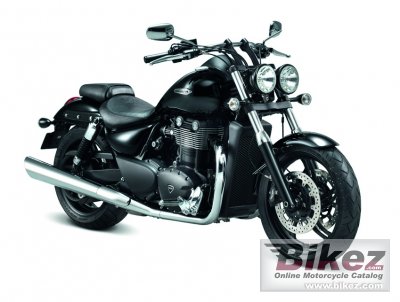

| Model: | Triumph Thunderbird Storm |
| Year: | 2013 |
| Category: | Custom / cruiser |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Price as new (MSRP): | US$ 14799. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 1597.00 ccm (97.45 cubic inches) |
| Engine type: | Twin, four-stroke |
| Engine details: | 270º firing interval |
| Power: | 86.00 HP (62.8 kW)) @ 4850 RPM |
| Torque: | 146.00 Nm (14.9 kgf-m or 107.7 ft.lbs) @ 2750 RPM |
| Compression: | 9.7:1 |
| Bore x stroke: | 103.8 x 103.8 mm (4.1 x 4.1 inches) |
| Fuel system: | Injection. Multipoint sequential electronic fuel injection. progressive linkage on throttle |
| Fuel control: | DOHC |
| Ignition: | Digital-inductive type via engine management system |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Belt |
| Clutch: | Wet. multi-plate |
| Driveline: | Toothed Belt |
| Fuel consumption: | 7.13 litres/100 km (14.0 km/l or 32.99 mpg) |
| Greenhouse gases: | 165.4 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system: | Chromed twin-skin stainless steel 2 into 1 into 2. tandem large-volume catalysts in centralized catbox. chrome-plated exhaust |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tubular Steel. twin spine |
| Rake (fork angle): | 32.0° |
| Trail: | 151 mm (5.9 inches) |
| Front suspension: | Showa 47mm forks. |
| Front suspension travel: | 120 mm (4.7 inches) |
| Rear suspension: | Showa chromed spring twin shocks with 5 position adjustable preload. |
| Rear suspension travel: | 95 mm (3.7 inches) |
| Front tyre dimensions: | 120/70-R19 |
| Rear tyre dimensions: | 200/50-R17 |
| Front brakes: | Double disc. Nissin 4-piston fixed calipers. ABS. |
| Front brakes diameter: | 310 mm (12.2 inches) |
| Rear brakes: | Single disc. Brembo 2-piston floating caliper. ABS |
| Rear brakes diameter: | 310 mm (12.2 inches) |
| Wheels: | Cast aluminum alloy 5-spoke |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 339.0 kg (747.4 pounds) |
| Seat height: | 700 mm (27.6 inches) If adjustable, lowest setting. |
| Overall height: | 1,120 mm (44.1 inches) |
| Overall length: | 2,340 mm (92.1 inches) |
| Overall width: | 880 mm (34.6 inches) |
| Wheelbase: | 1,615 mm (63.6 inches) |
| Fuel capacity: | 22.00 litres (5.81 gallons) |
| Oil capacity: | 4.20 litres (0.28 quarts) |
| Other specifications |
|---|
| Starter: | Electric |
| Instruments: | Analogue speedometer featuring integrated rev counter, scroll button on handlebars, LCD trip computer, fuel gauge and clock |
| Factory warranty: | 24 months unlimited mileage |
| Color options: | Black |
