Triumph's profilation of this bike |
A true roadster in every sense of the word, the Bonneville matches classic British style to 21st century technology. |
General information |
---|

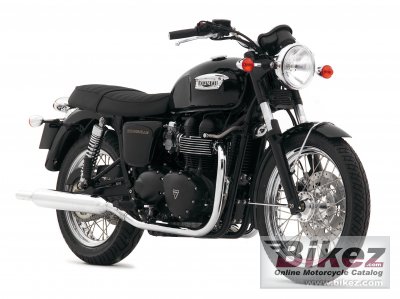

Model: | Triumph Bonneville Black |
Year: | 2007 |
Category: | Classic |
Rating: | 79.3 out of 100. Show full rating and compare with other bikes |
Engine and transmission |
---|
Displacement: | 865.00 ccm (52.78 cubic inches) |
Engine type: | Twin, four-stroke |
Power: | 67.00 HP (48.9 kW)) @ 7200 RPM |
Torque: | 71.00 Nm (7.2 kgf-m or 52.4 ft.lbs) @ 6000 RPM |
Compression: | 9.2:1 |
Bore x stroke: | 90.0 x 68.0 mm (3.5 x 2.7 inches) |
Fuel system: | Carburettor. Twin carburettors with throttle position sensor and electric carburettor heaters |
Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
Ignition: | Digital - inductive type |
Cooling system: | Air |
Gearbox: | 5-speed |
Transmission type, final drive: | Chain |
Clutch: | Wet. multi-plate |
Chassis, suspension, brakes and wheels |
---|
Frame type: | Tubular steel cradle |
Rake (fork angle): | 28.0° |
Front suspension: | 41mm forks |
Rear suspension: | Chromed spring twin shocks with adjustable preload |
Front tyre: | 100/90-19 |
Rear tyre: | 130/80-17 |
Front brakes: | Single disc |
Front brakes diameter: | 310 mm (12.2 inches) |
Rear brakes: | Single disc |
Rear brakes diameter: | 255 mm (10.0 inches) |
Physical measures and capacities |
---|
Dry weight: | 204.6 kg (451.0 pounds) |
Power/weight ratio: | 0.3275 HP/kg |
Seat height: | 775 mm (30.5 inches) If adjustable, lowest setting. |
Overall height: | 1,100 mm (43.3 inches) |
Overall length: | 2,230 mm (87.8 inches) |
Overall width: | 840 mm (33.1 inches) |
Wheelbase: | 1,500 mm (59.1 inches) |
Fuel capacity: | 16.65 litres (4.40 gallons) |
Other specifications |
---|
Color options: | Bonneville Black Special Edition with black covers |
Modifications compared to previous model: | For 2007 the Bonneville has an increased engine size of 865cc. This latest model also comes with a black engine and polished, lacquered engine covers and a span adjustment clutch lever.
|
Further information |
---|
Insurance costs | Get estimated US insurance cost with a quote from Allstate Motorcycle Insurance.
|
Parts finder |
Chaparral provides online schematics & OEM parts for the US.
Motorcycle Superstore provides an easy-to-use parts finder. Ships to the US, Canada, UK and Australia.
MotoSport.com ships motorcycle parts and accessories to most countries.
Sixity.com has low prices and free shipping on ATV and motorcycle parts to the US.
Also check out our overview of motorcycle webshops at Bikez.info. |
Ask questions | Join the 07 Triumph Bonneville Black discussion group or the general Triumph discussion group. |
Loans, tests, etc | Search the web for dealers, loan costs, tests, customizing, etc. |
Related bikes | List related bikes for comparison of specs. |
|
Rating sample for this Triumph bike
|
Racing track capabilities for the 2007 Triumph Bonneville Black:

(65.6 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
