| General information |
|---|

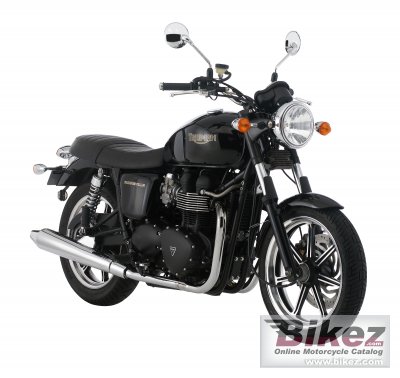

| Model: | Triumph Bonneville |
| Year: | 2009 |
| Category: | Classic |
| Rating: | 73.1 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 865.00 ccm (52.78 cubic inches) |
| Engine type: | Twin |
| Stroke: | 4 |
| Power: | 67.05 HP (48.9 kW)) @ 7500 RPM |
| Torque: | 69.00 Nm (7.0 kgf-m or 50.9 ft.lbs) @ 5800 RPM |
| Bore x stroke: | 90.0 x 68.0 mm (3.5 x 2.7 inches) |
| Fuel system: | Injection. Multipoint sequential electronic fuel injection with SAI |
| Fuel control: | DOHC |
| Starter: | Electric |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type
final drive: | Chain |
| Clutch: | Wet. multi-plate |
| Physical measures |
|---|
| Dry weight: | 203.0 kg (447.5 pounds) |
| Seat height: | 751 mm (29.6 inches) If adjustable, lowest setting. |
| Overall height: | 1,100 mm (43.3 inches) |
| Overall length: | 2,144 mm (84.4 inches) |
| Overall width: | 748 mm (29.4 inches) |
| Wheelbase: | 1,500 mm (59.1 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Tubular steel cradle |
| Rake (fork angle): | 27.0° |
| Trail: | 106 mm (4.2 inches) |
| Front suspension: | 41mm forks. 120mm travel |
| Rear suspension: | Chromed spring twin shocks with adjustable preload. 100mm rear wheel travel |
| Front tyre dimensions: | 100/70-R17 |
| Rear tyre dimensions: | 130/80-R17 |
| Front brakes: | Single disc |
| Front brakes diameter: | 310 mm (12.2 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 255 mm (10.0 inches) |
| Speed and acceleration |
|---|
| Power/weight ratio: | 0.3303 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 16.00 litres (4.23 gallons) |
| Color options: | Jet Black. Fusion White |
