| General information |
|---|

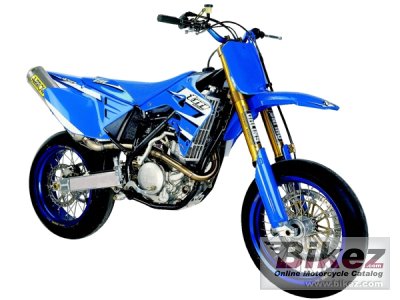

| Model: | TM Racing SMX 660 F Competition |
| Year: | 2006 |
| Category: | Super motard |
| Rating: | 69.7 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 657.16 ccm (40.10 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Compression: | 16.7:1 |
| Bore x stroke: | 104.0 x 77.4 mm (4.1 x 3.0 inches) |
| Fuel system: | Carburettor. Keihin FCR 41mm |
| Fuel control: | DOHC |
| Ignition: | Kokusan CDI Electronic with variable advance |
| Lubrication system: | Dry sump with double rotor pump |
| Cooling system: | Liquid |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Multiuple-disk in oil-bath with hydaulic control |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Cr-Mo steel Perimetral oval section |
| Front brakes: | Single disc |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 240 mm (9.4 inches) |
| Physical measures and capacities |
|---|
| Fuel capacity: | 8.00 litres (2.11 gallons) |
| Other specifications |
|---|
| Starter: | Kick |
| Color options: | Blue |
