| General information |
|---|

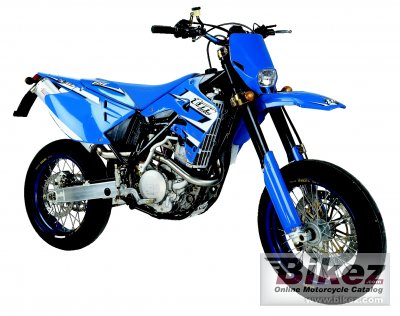

| Model: | TM Racing SMR 530 F e.s. |
| Year: | 2006 |
| Category: | Super motard |
| Rating: | 68.1 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 527.70 ccm (32.20 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Compression: | 16.7:1 |
| Bore x stroke: | 98.0 x 70.0 mm (3.9 x 2.8 inches) |
| Fuel system: | Carburettor. Mikuni TDMR 41mm |
| Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition: | Kokusan CDI Electronic with variable advance |
| Lubrication system: | Dry sump with double rotor pump |
| Cooling system: | Liquid |
| Gearbox: | 5-speed |
| Clutch: | Multiuple-disk in oil-bath with hydaulic control |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Cr-Mo steel Perimetral oval section |
| Front tyre: | 120/70-ZR17 |
| Rear tyre: | 150/60-ZR17 |
| Front brakes: | Single disc |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 240 mm (9.4 inches) |
| Physical measures and capacities |
|---|
| Fuel capacity: | 8.00 litres (2.11 gallons) |
| Other specifications |
|---|
| Color options: | Blue |
| Starter: | Electric & kick |
