| General information |
|---|

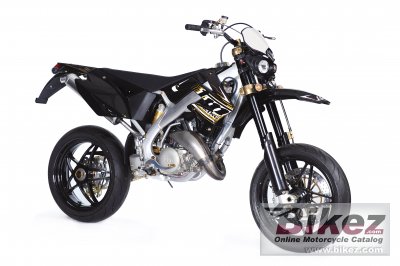

| Model: | TM Racing SMM 125 B. D. |
| Year: | 2010 |
| Category: | Super motard |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 123.50 ccm (7.54 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Compression: | 16.7:1 |
| Bore x stroke: | 54.0 x 54.5 mm (2.1 x 2.1 inches) |
| Fuel system: | Carburettor |
| Ignition: | Kokusan CDI Electronic with variable advance |
| Lubrication system: | 3.5% oil mixture |
| Cooling system: | Liquid |
| Clutch: | Multiuple-disk in oil-bath with hydaulic control |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Perimetral aluminium section |
| Front suspension: | Marzocchi USD |
| Rear suspension: | Sachs Boge (optional Ohlins ) |
| Front tyre dimensions: | 120/70-ZR17 |
| Rear tyre dimensions: | 150/60-ZR17 |
| Front brakes: | Single disc. Brembo radial pump and caliper |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. Nissin pump and Brembo caliper |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Fuel capacity: | 8.70 litres (2.30 gallons) |
| Other specifications |
|---|
| Color options: | Black |
| Comments: | Also called SMM 125 Black Dream. Made in Italy. |
