| General information |
|---|

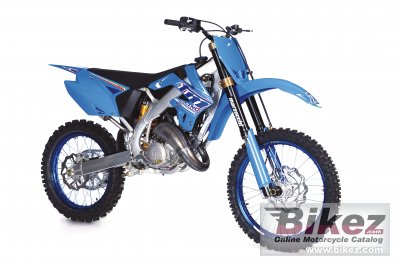

| Model: | TM Racing MX 125 |
| Year: | 2010 |
| Category: | Cross / motocross |
| Rating: | 46.3 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 123.50 ccm (7.54 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Bore x stroke: | 54.0 x 54.5 mm (2.1 x 2.1 inches) |
| Fuel system: | Carburettor. Keihin PWK 38 |
| Ignition: | Kokusan CDI Electronic with variable advance |
| Lubrication system: | 3.5% mixture |
| Cooling system: | Liquid |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Multiple-disk in oil bath with hydraulic control |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Perimetral aluminium section |
| Front suspension: | Marzocchi USD |
| Rear suspension: | Sachs Boge (optional Ohlins ) |
| Front tyre dimensions: | 90/90-21 |
| Rear tyre dimensions: | 100/90-19 |
| Front brakes: | Single disc. Wave disk. Nissin pump and caliper |
| Front brakes diameter: | 270 mm (10.6 inches) |
| Rear brakes: | Single disc. Wave disk. Nissin pump and caliper |
| Rear brakes diameter: | 245 mm (9.6 inches) |
| Physical measures and capacities |
|---|
| Fuel capacity: | 8.70 litres (2.30 gallons) |
| Other specifications |
|---|
| Color options: | Blue |
| Comments: | Italian made bike. |
